ET25-2

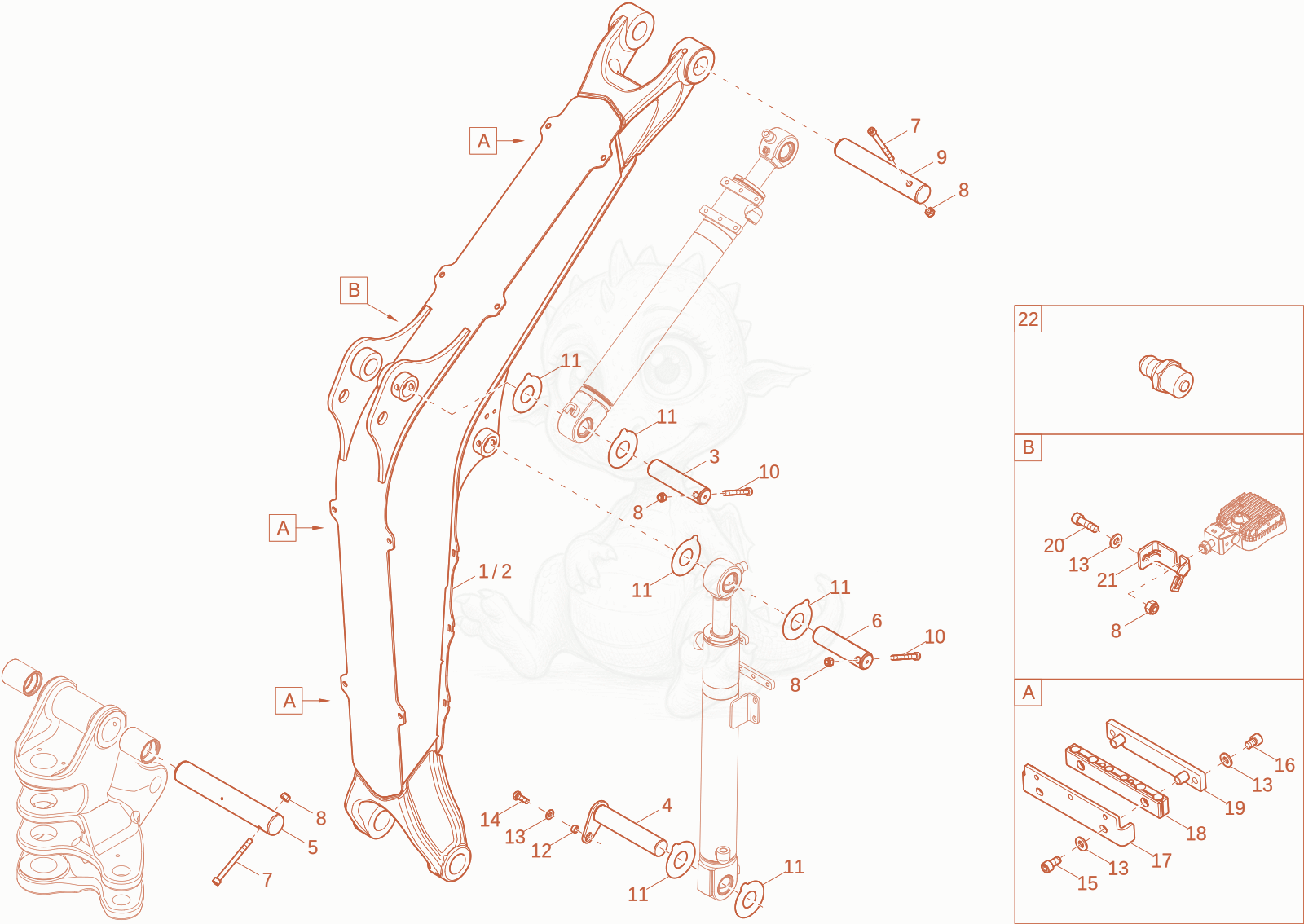

ET25-2 lift arm Diagram

Exploded parts diagram of the lift arm of a Wacker Neuson ET25-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000562064Not stocked
    lift arm×1
  • 21000562065Not stocked
    lift arm×1
  • 31000505743Price
    pin - 1000505743×1
  • 41000540170Not stocked
    pin×1
  • 51000466375Price
    pin - 1000466375×1
  • 61000507417Price
    pin - 1000507417×1
  • 71000085471Price
    cheese head screw - 1000085471×2
  • 81000357535Not stocked
    hexagon nut×5
  • 91000466378Price
    pin - 1000466378×1
  • 101000451100Not stocked
    screw×2
  • 111000370167Not stocked
    shim×6
  • 121000420372Not stocked
    sleeve×1
  • 131000094974Price
    washer M10-DIN134 - 1000094974×14
  • 141000015364Not stocked
    hex screw×1
  • 151000015354Price
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×6
  • 161000082374Price
    cheese head screw M10x16 - 1000082374×6
  • 171000508658Not stocked
    clamp×3
  • 181000459025Not stocked
    clamp×3
  • 191000508657Not stocked
    clamp×3
  • 201000048178Not stocked
    cheese head screw×1
  • 211000509872Not stocked
    plate×1
  • 221000015476Not stocked
    grease nipple×2
