ET16

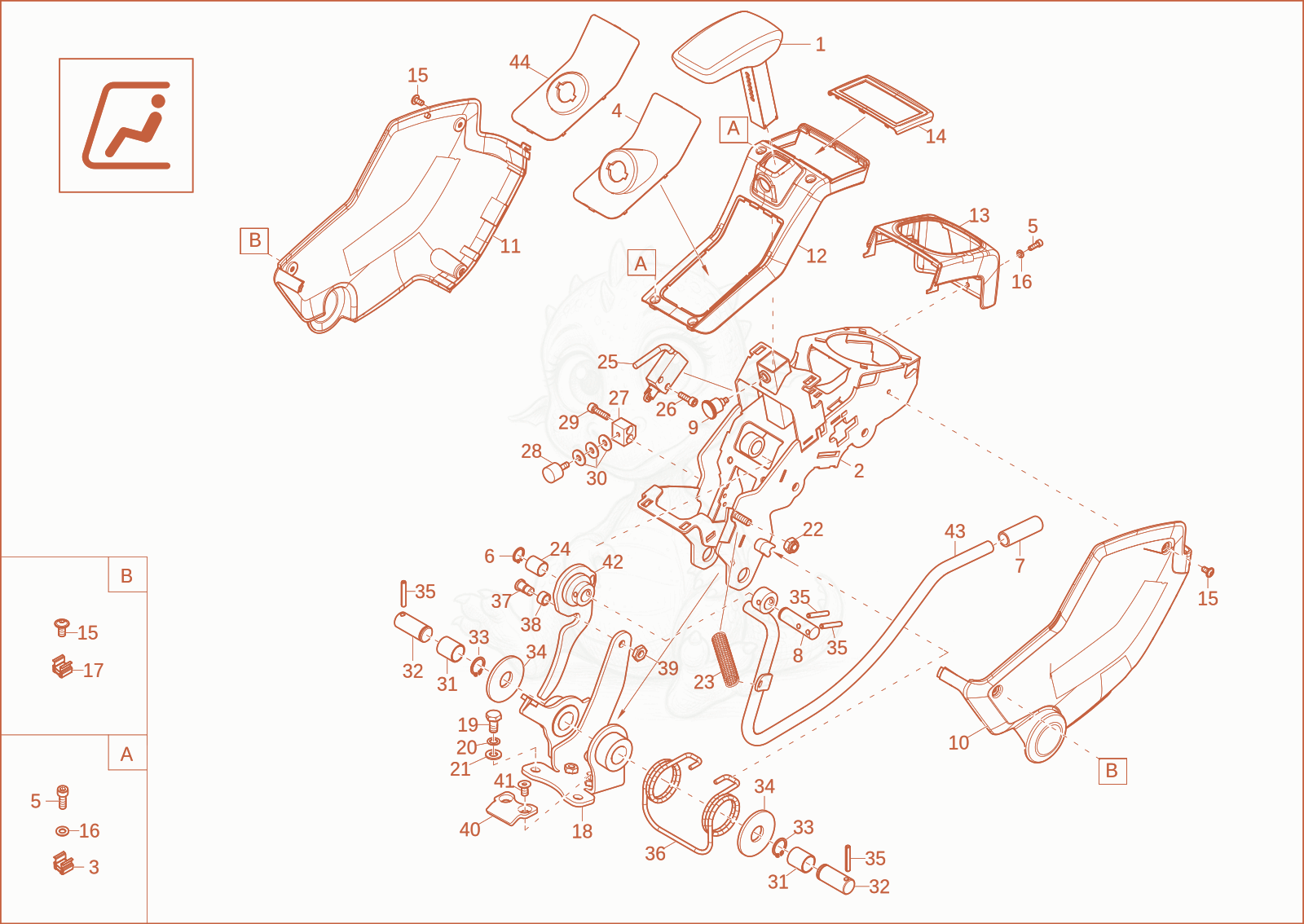

ET16 controllever carrier right (Option) Diagram
- 11000374480Not stockedarm rest×1
- Frame 1000274378×1
- Korgmutter M5 3,6-4,5 - 1000094953×4
- Plastic cover ignition lock - 1000406821×1
- allen screw M5x16-8.8 A2C DIN912 - 1000085451×5
- lock ring 16x1 - 1000085631×1
- handle protection - 1000248836×1
- pin DM=16x57 - 1000247955×1
- pin detent - 1000247956×1
- cover right - 1000248073×1
- cover left - 1000248074×1
- 121000319136Not stockedtrim×1
- 131000319137Not stockedtrim×1
- 141000319080Not stockedinsert×1
- screw M6x12 ISO7380-2 - 1000165459×5
- washer A 5,3 A2C DIN125 - 1000094962×5
- cage nut M6 2,6-3,5 - 1000094952×2
- Console 1000278646×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
- 201000015438Not stockedlock washer×3
- washer 10,5 A2C DIN125 - 1000015432×3
- DIN985-M8-8-A2C - 1000015416×1
- tension spring - 1000247991×1
- slide bearing 16x18x20 - 1000247957×1
- end switch - 1000247989×1
- allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
- bracket rupper buffer - 1000247984×1
- metal-rubber buffer - 1000247997×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
- washer A 6,4 St A2C DIN9021 - 1000095343×3
- slide bearing 20x23x25 - 1000247959×2
- pin DM=20x47 - 1000247954×2
- lock ring 20x1,2 - 1000095358×2
- end washer - 1000247987×2
- cotter pin 5x36 - 1000082719×4
- spring 4,5x56 - 1000247988×1
- pin - 1000254944×1
- roller - 1000254945×1
- nut M10x1,25 A2C-DIN439 - 1000256268×1
- bracket - 1000261540×1
- countersunk screw - 1000085531×2
- LEVER - 1000259735×1
- BLOCK LEVER - 1000259737×1
- 441000319133Not stockedinsert×1
