ET16

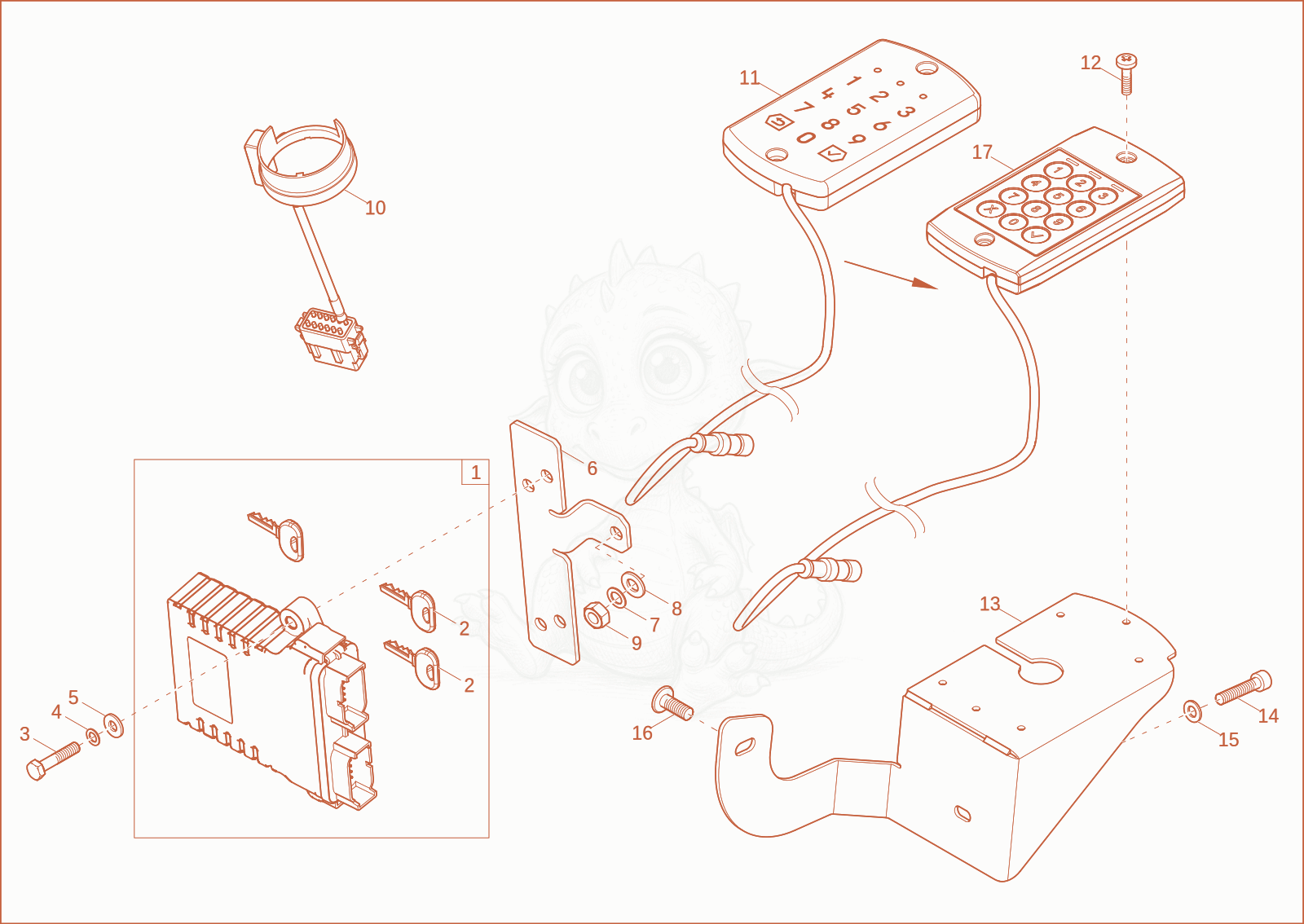

ET16 drive lock (Option) Diagram
- drive lock - 1000302412×1
- Blue Coded Key - 1000163262×2
- 31000021059Not stockedhex screw×2
- 41000015436Not stockedlock washer×2
- washer M6,4-DIN134 - 1000094966×2
- bracket - 1000362889×1
- 71000015437Not stockedlock washer×1
- 81000015431Not stockedwasher×1
- 91000015406Not stockedhexagon nut×1
- antenna - 1000302414×1
- keypad Access Control - 1000400226×1
- ovalhead screw - 1000085546×2
- 131000470015Not stockedbracket×1
- cheese head screw - 1000085453×1
- washer A 5,3 A2C DIN125 - 1000094962×1
- 161000326518Not stockedflat head screw×1
- 171000533358Not stockedkeypad×1
