DW60-2

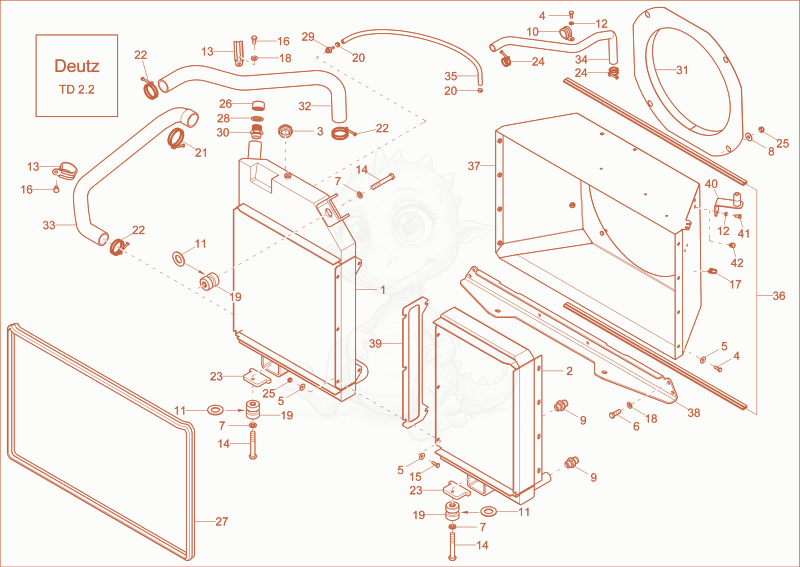

DW60-2 combicooler Diagram
- COMBI COOLER_WATER - 1000453534×1
- COMBI COOLER_OIL, DIESEL - 1000453533×1
- 31000002989Not stockedview glass×1
- 41000013008Not stockedhex screw×9
- 51000013027Not stockedwasher×18
- 61000015364Not stockedhex screw×4
- 71000049219Not stockedwasher×3
- Washer 10,5 St A2C - 1000092303×4
- 91000015499Not stockedscrew joint×2
- pipe clamp RSGU 1.30/20 - 1000272660×1
- WASHER - 1000082615×3
- 121000015431Not stockedwasher×3
- pipe clamp - 1000083252×2
- HEX SCREW - 1000085332×3
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×5
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
- 171000090083Not stockedcable strap×4
- washer M10-DIN134 - 1000094974×5
- METAL- RUBBER BUFFER - 1000105025×3
- hose clamp - 1000271340×2
- 211000325014Not stockedhose clamp×1
- 221000325015Not stockedhose clamp×3
- 231000332140Not stockedthread plate×2
- 241000348206Not stockedhose clamp×2
- 251000357534Not stockedhexagon nut×9
- 261000375983Not stockedcooler cap×1
- 271000017845Not stockedrubber profile×3.1
- 281000390986Not stockedseal ring×1
- 291000403352Not stockedscrew joint×1
- 301000410963Not stockedend piece×1
- 311000458339Not stockedring×1
- hose - 1000428895×1
- hose - 1000428896×1
- cooler water hose - 1000428898×1
- hose - 1000424297×0.7
- rubber profile - 1000097922×1.9
- top cover - 1000477189×1
- bracket - 1000438294×1
- plate - 1000442669×1
- Bracket - 1000476809×1
- 411000019136Not stockedhex screw×2
- plug M8 - 1000288011×2
