DW60-2

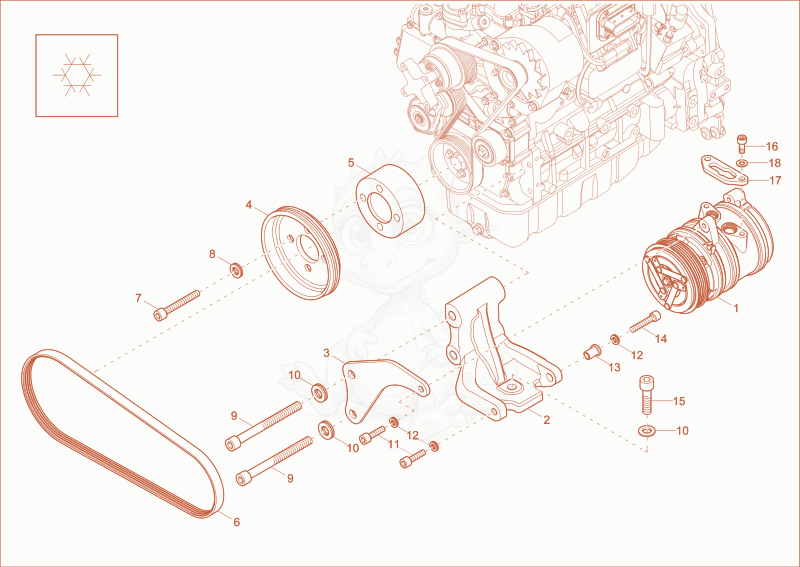

DW60-2 ADDITIONAL PARTS AIR-CONDITIONING (OPT.) Diagram
- 11000309964Not stockedcompressor aircondition×1
- 21000393794Not stockedmounting bracket×1
- holder - 1000413262×1
- belt pulley - 1000438728×1
- 51000354087Not stockedbelt pulley×1
- V-belt - 1000438751×1
- screw - 1000085506×4
- 81000426230Not stockedlock washer×4
- cheese head screw - 1000085516×2
- 101000426231Not stockedlock washer×3
- cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×2
- 121000426229Not stockedlock washer×3
- 131000325792Not stockedsleeve×1
- cheese head screw - 1000085498×1
- cheese head screw M12x45 10.9Dacro500DIN - 1000085511×1
- 161000019593Not stockedcheese head screw×2
- plate - 1000401668×1
- 181000015431Not stockedwasher×2
- 191000019593Not stockedcheese head screw×2
