DW15e

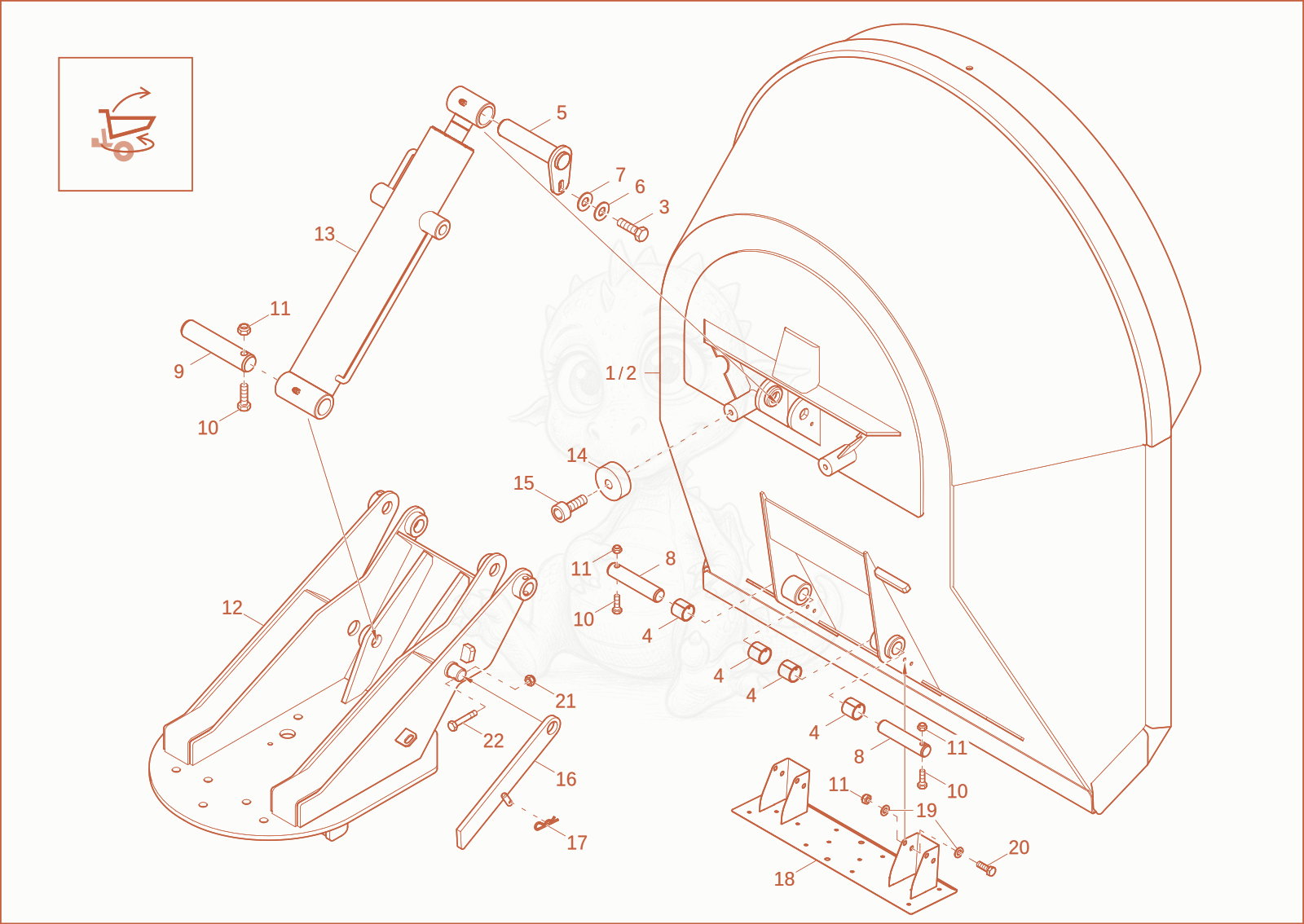

DW15E skip Diagram
- 11000320021Not stockedpowerswivel×1
- powerswivel - 1000320023×1
- 31000013008Not stockedhex screw×1
- DX BUSHING - 1000083234×4
- 51000065192Not stockedpin tiltram×1
- 61000082617Not stockedspring washer×1
- 71000015448Not stockedwasher×1
- PIN - 1000065135×2
- pin - 1000065136×1
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×3
- 111000357534Not stockedhexagon nut×7
- 121000319999Not stockedswivel console×1
- 131000372004Not stockedtilt ram×1
- 141000064951Not stockedbucket support×2
- 151000082415Not stockedcheese head screw×2
- 161000065144Not stockedmaintenance support×1
- plug - 1000082627×1
- 181000362089Not stockedbracket immatriculation plate×1
- 191000015431Not stockedwasher×8
- 201000015343Not stockedhex screw×4
- 211000357533Not stockedhexagon nut×1
- 221000015366Not stockedhex screw×1
