DW15e

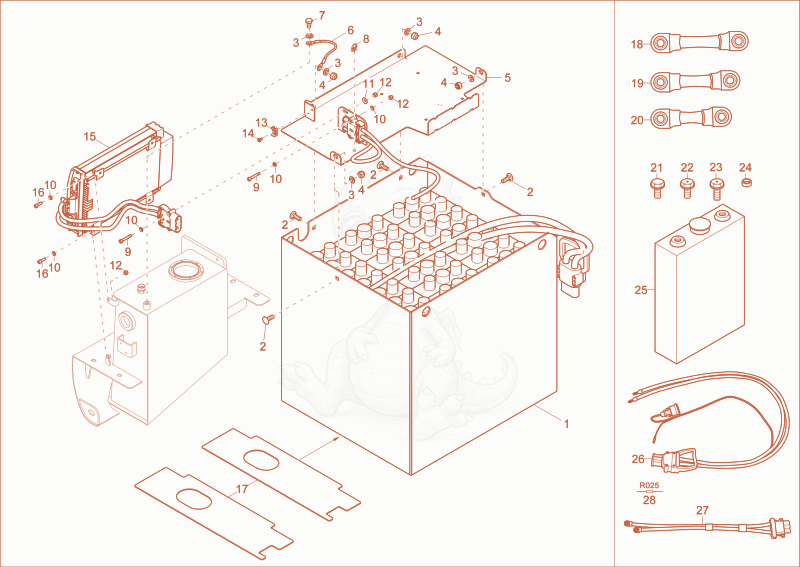

DW15E BATTERY Diagram
- 11000401645Not stockedbattery×1
- door strap screw - 1000299982×4
- washer 10,5 A2C DIN125 - 1000015432×5
- 41000357535Not stockedhexagon nut×4
- 51000420484Not stockedboard×1
- cable 180MM - 1000412089×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- 81000090083Not stockedcable strap×1
- Screw M6x40-8.8 A2C DIN912 - 1000085458×4
- 101000015430Not stockedwasher×10
- washer A 6,4 St A2C DIN9021 - 1000095343×2
- 121000357533Not stockedhexagon nut×6
- 131000345507Not stockedbracket×2
- flat head screw - 1000085547×2
- 151000402610Not stockedMicropower Access 30 40A IP66 A11×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
- 171000355735Not stockedrubber mat×2
- 181000376287Not stockedpipe line×1
- 191000376286Not stockedpipe line×1
- 201000376285Not stockedpipe line×1
- 211000406590Not stockedscrew×1
- 221000406971Not stockedscrew×1
- 231000427476Not stockedscrew×1
- 241000427477Not stockedwasher×1
- 251000427478Not stockedbattery×1
- 261000427475Not stockedcable×1
- 271000427473Not stockedcable×1
- 281000467474Not stockedresistor×1
