DV60

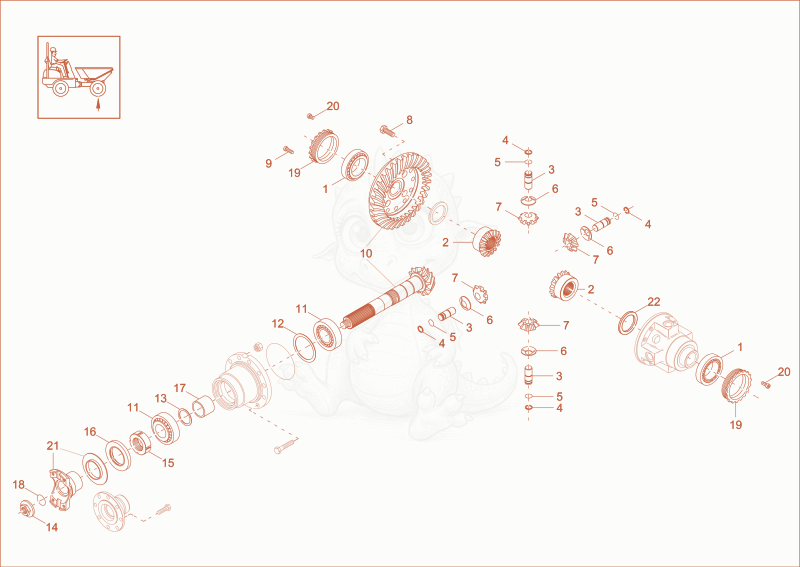

DV60 differential axle Diagram
- 11000330331Not stockedball bearing×2
- Differential - 1000407588×2
- Pin - 1000330333×4
- lock ring - 1000183483×4
- lock ring - 1000183484×4
- washer - 1000183486×4
- pinion - 1000407599×4
- Screw - 1000143358×12
- screw - 1000407637×4
- bevel gear pair - 1000114263×1
- TAPER ROLLER BEARING - 1000113694×2
- 121000330292Not stockedSET OF SPACERS×1
- 131000330294Not stockedSET OF SPACERS×1
- Nut - 1000150352×1
- SHAFT NUT - 1000150350×1
- seal ring - 1000143240×1
- SHIM - 1000150349×1
- O-Ring - 1000113688×1
- Nut - 1000150343×2
- CHEESE HEAD SCREW - 1000150348×2
- Flange 1000150351×1
- washer - 1000183488×2
