Vibration Plate DPU 9070

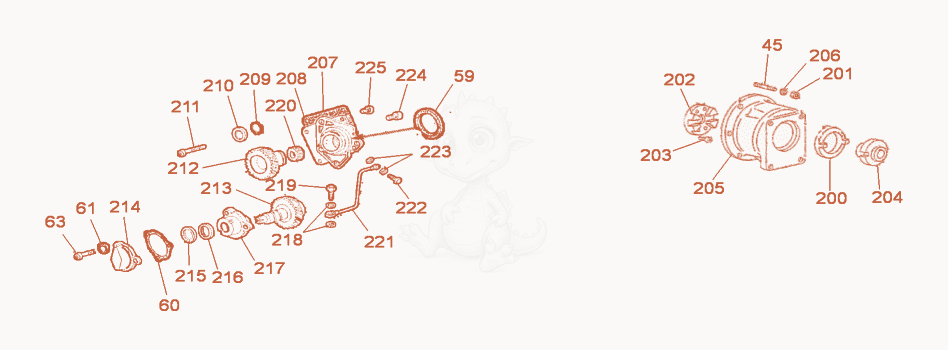

DPU9070 1st and 3rd Power Transmission Diagram
- STUD M8 X 30 - 5000084167×6
- O-Ring - 5000097907×1
- GASKET - 5000063683×1
- Washer - 5000082292×3
- SCREW M8 X 55 - 5000084168×3
- ADAPTER-INT.COUPLING - 5000083668×1
- NUT M8 - 5000082140×6
- Flange - 5000099776×1
- Bolt - 5000083671×4
- Flange - 5000099777×1
- Housing - 5000099778×1
- WASHER - 5000082288×6
- GASKET-PINION FLANGE - 5000063723×1
- 2085000128991Not stockedSlide bearing×1
- Retaining ring - 5000203347×1
- 2105000096464Not stockedWasher×1
- 2115000128949Not stockedScrew×2
- 2125000096463Not stockedDrive gear×1
- 2135000096460Not stockedPinion shaft×1
- COVER-PINION HOUSING - 5000063719×1
- Retaining ring - 5000203348×1
- washer - 5000063720×1
- HOUSING-PINION SHAFT - 5000063718×1
- WASHER-COPPER - 5000082184×2
- FITTING-BANJO - 5000096461×1
- 2205000128950Not stockedConnector×1
- 2215000096462Not stockedGrease pipe×1
- BOLT-UNION - 5000203349×1
- WASHER-COPPER - 5000083995×2
- Bolt - 5000083671×2
- SCREW M8 X 20 - 5000084169×1
