Vibration Plate DPU 9070

DPU9070 Exciter cpl. Diagram

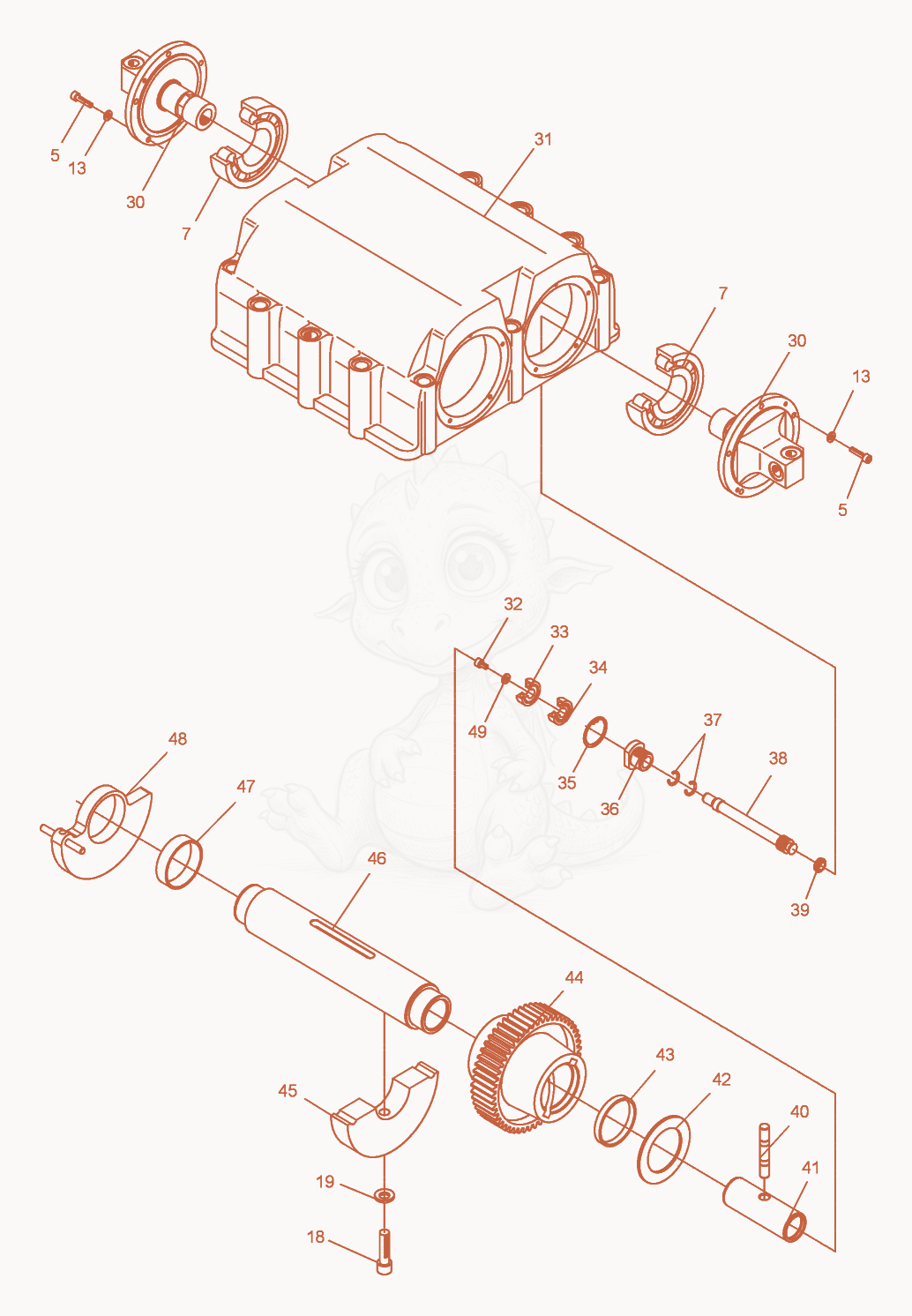

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson DPU9070, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305000096919Price
    COVER-CYLINDER - 5000096919×2
  • 315000105785Not stocked
    Exciter housing×1
  • 325000124718Price
    SCREW M6X12-12.9 HEX - 5000124718×2
  • 335000044950Price
    BEARING-ANG.CONTACT BALL,7201 - 5000044950×2
  • 345000044951Price
    BEARING-RADIAL BALL,6201 - 5000044951×2
  • 355002001939Price
    RET.RING-INT 32MMX1.2MM, - 5002001939×2
  • 365000096981Not stocked
    Bush×2
  • 375000096977Price
    O-Ring - 5000096977×4
  • 385000096987Not stocked
    Piston×2
  • 395000096976Price
    GASKET-CYLINDER - 5000096976×2
  • 405000096980Price
    PIN-TRIPPING - 5000096980×1
  • 415000096986Not stocked
    Piston×1
  • 425000097151Price
    Washer - 5000097151×2
  • 435000096982Price
    Bushing - 5000096982×2
  • 445000096996Not stocked
    Adjusting sleeve×1
  • 455000096992Not stocked
    Eccentric weight×4
  • 465000097000Price
    SHAFT-ECCENTRIC - 5000097000×1
  • 475000096984Not stocked
    Bush×2
  • 485000097153Not stocked
    Eccentric weight×2
  • 495000124717Price
    Washer - 5000124717×2
