DPU7060Fet

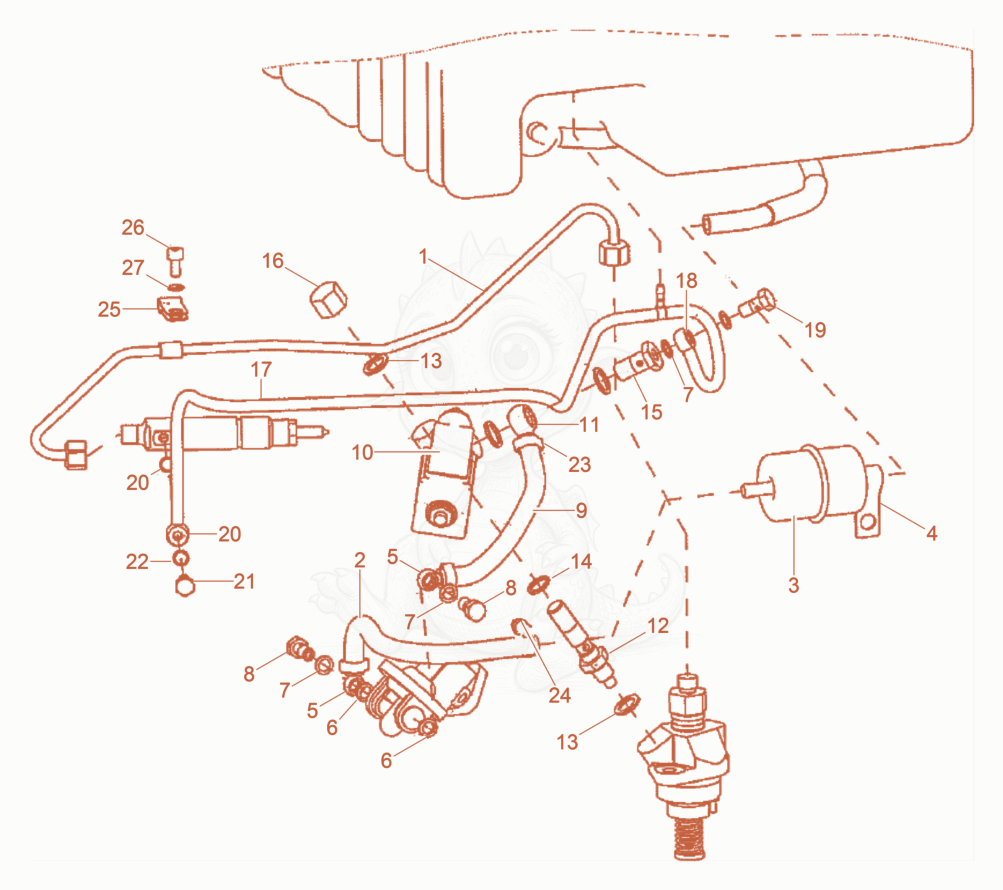

DPU7060FET Fuel System Diagram
- 15000204496Not stockedFuel Pressure Line×1
- 25000204497Not stockedFuel pipe cpl.×1
- FILTER-ENGINE FUEL,DIESEL - 5000068211×1
- CLAMP - 5000204764×1
- 55100006305Not stockedAnnular piece×2
- SEAL-RING - 5000104585×2
- SEAL-RING A8X12X1 - 5000204742×4
- FITTING-BANJO BOLT - 5000099495×2
- 95000204498Not stockedFuel Pipe×1
- 105000104590Not stockedSolenoid×1
- 115100006279Not stockedConnector×1
- 125000104589Not stockedCasing adaptor×1
- 135000204746Not stockedGasket×4
- SEAL-RING A12X16X1.5 - 5000204745×1
- 155000204626Not stockedBanjo bolt×1
- 165000204720Not stockedCap nut×1
- 175000204499Not stockedFuel Pipe×1
- 185000098961Not stockedAnnular piece×1
- SCREW M8X1,HOLLOW - 5000204752×1
- 205100006307Not stockedAnnular piece×1
- 215000044111Not stockedBanjo bolt×1
- 225000204741Not stockedGasket×2
- Clamp - 5000063800×3
- CLAMP 8-16/9-C72 - 5000204765×1
- 255000037327Not stockedClamp×1
- 265000204718Not stockedCheese head screw×1
- 275000204696Not stockedSpring washer×1
