DPU6055-VIBROPLATE

DPU6055WC Baseplate cpl. Diagram

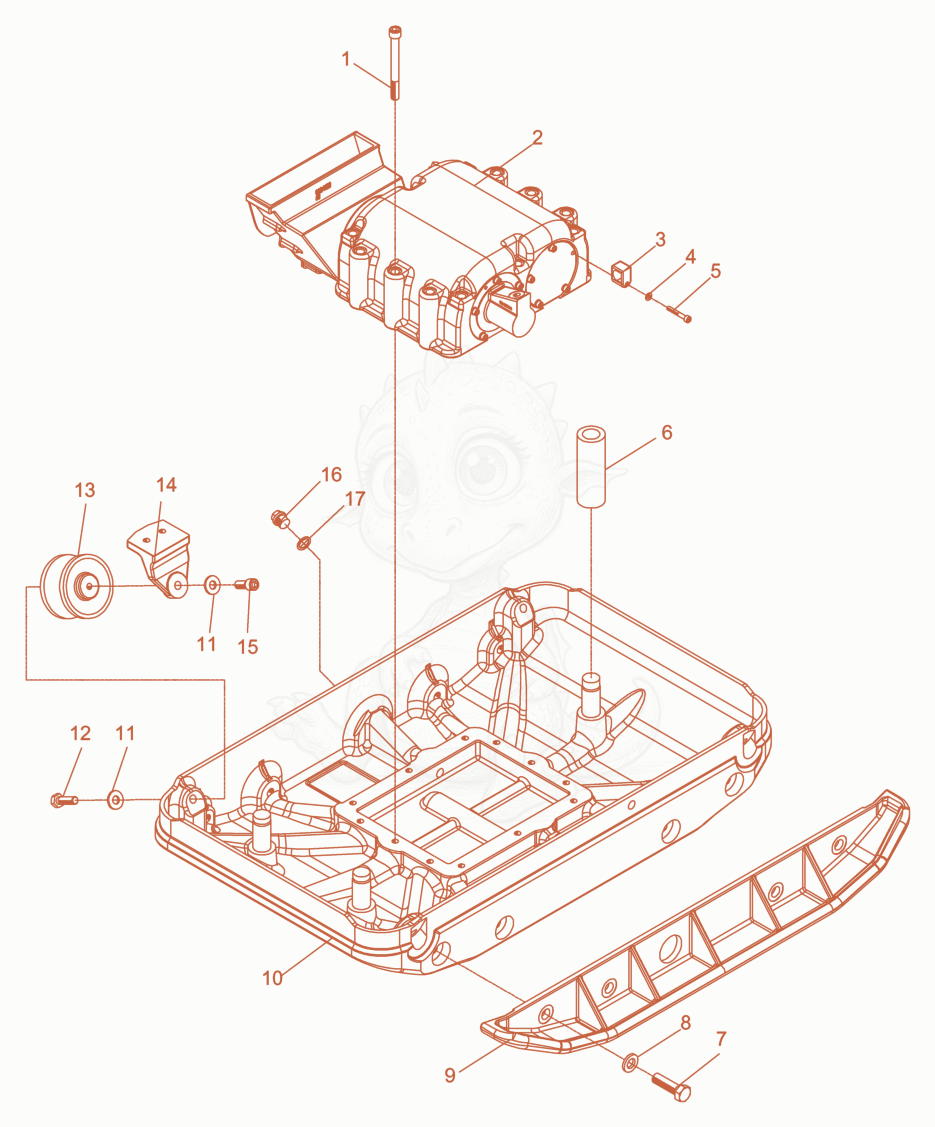

Exploded parts diagram of the Baseplate cpl. of a Wacker Neuson DPU6055WC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000094518Price
    SCREW M12 X 120 10.9 - 5000094518×12
  • 25000126260Not stocked
    Exciter cpl.×1
  • 35000069727Price
    CLAMP LB318PP - 5000069727×1
  • 45000010624Price
    WASHER B6.4 FLAT - 5000010624×1
  • 55000011547Price
    SCREW M6 X 40 SOC.HD. - 5000011547×1
  • 65000034442Price
    BUSHING-IMPACT,PLASTIC - 5000034442×3
  • 75000039191Price
    SCREW M16 X 55 HX.HD. - 5000039191×8
  • 85000021988Price
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×8
  • 95000044442Not stocked
    Extension plate×2
  • 105000102083Price
    BASEPLATE-LOWER,ASSY - 5000102083×1
  • 115000031565Price
    WASHER-LOCK A12 - 5000031565×8
  • 125000011421Not stocked
    Hexagonal head cap screw×4
  • 135002004814Price
    SHOCKMOUNT 100 X 58-45SH,FRM C - 5002004814×4
  • 145000102105Price
    SUPPORT - 5000102105×4
  • 155000011529Price
    SCREW M12 X 30 SOC.HD - 5000011529×4
  • 165000068222Price
    PLUG M18 X 1.5 ST - 5000068222×1
  • 175000019156Price
    SEAL-RING 18 X 24 - 5000019156×1
