DPU6055-VIBROPLATE

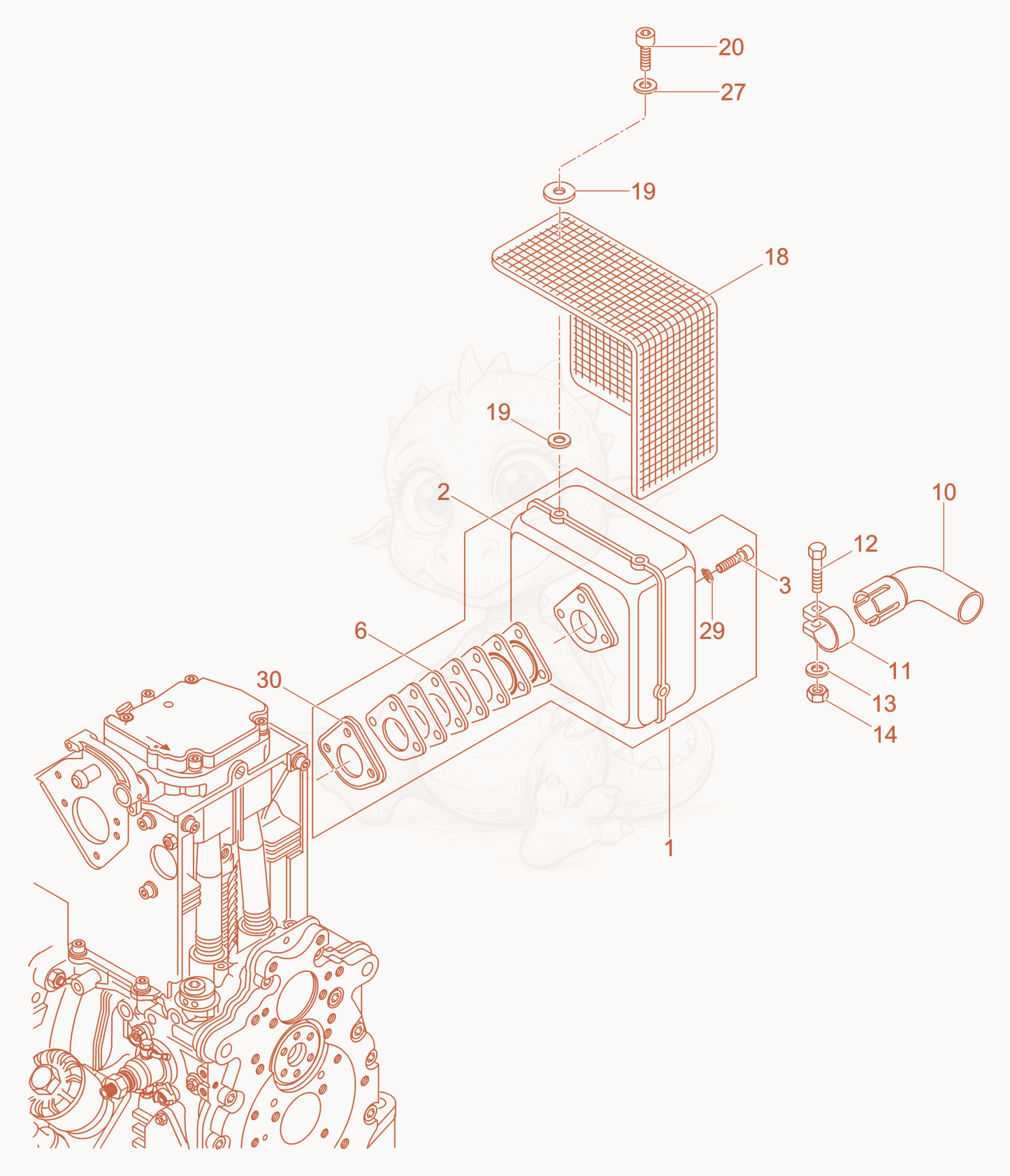

DPU6055WC Exhaust Silencer Diagram

Exploded parts diagram of the Exhaust Silencer of a Wacker Neuson DPU6055WC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217088Price
    MUFFLER - 5000217088×1
  • 35000217111Price
    SCREW-SOCKET HD,M8 X 35 - 5000217111×3
  • 65000217096Price
    GASKET SET - 5000217096×1
  • 105000126956Price
    TUBE-EXHAUST 115 DEG. - 5000126956×1
  • 115000095100Price
    Clamp - 5000095100×1
  • 125000207591Price
    SCREW M10X50,HEX - 5000207591×1
  • 135000202434Price
    WASHER-10.5 - 5000202434×1
  • 145000207589Price
    NUT VM10,HEX - 5000207589×1
  • 185000207535Not stocked
    Contact safety device×1
  • 195000099525Price
    Washer - 5000099525×10
  • 205000202443Price
    SCREW-ALLEN,M6 X 12 - 5000202443×5
  • 275000151540Price
    DISC A6.4 A3C - 5000151540×5
  • 295000151218Price
    WASHER-SPRING - 5000151218×3
  • 305000217098Not stocked
    Gasket×1
