DPU2870-VIBROPLATE

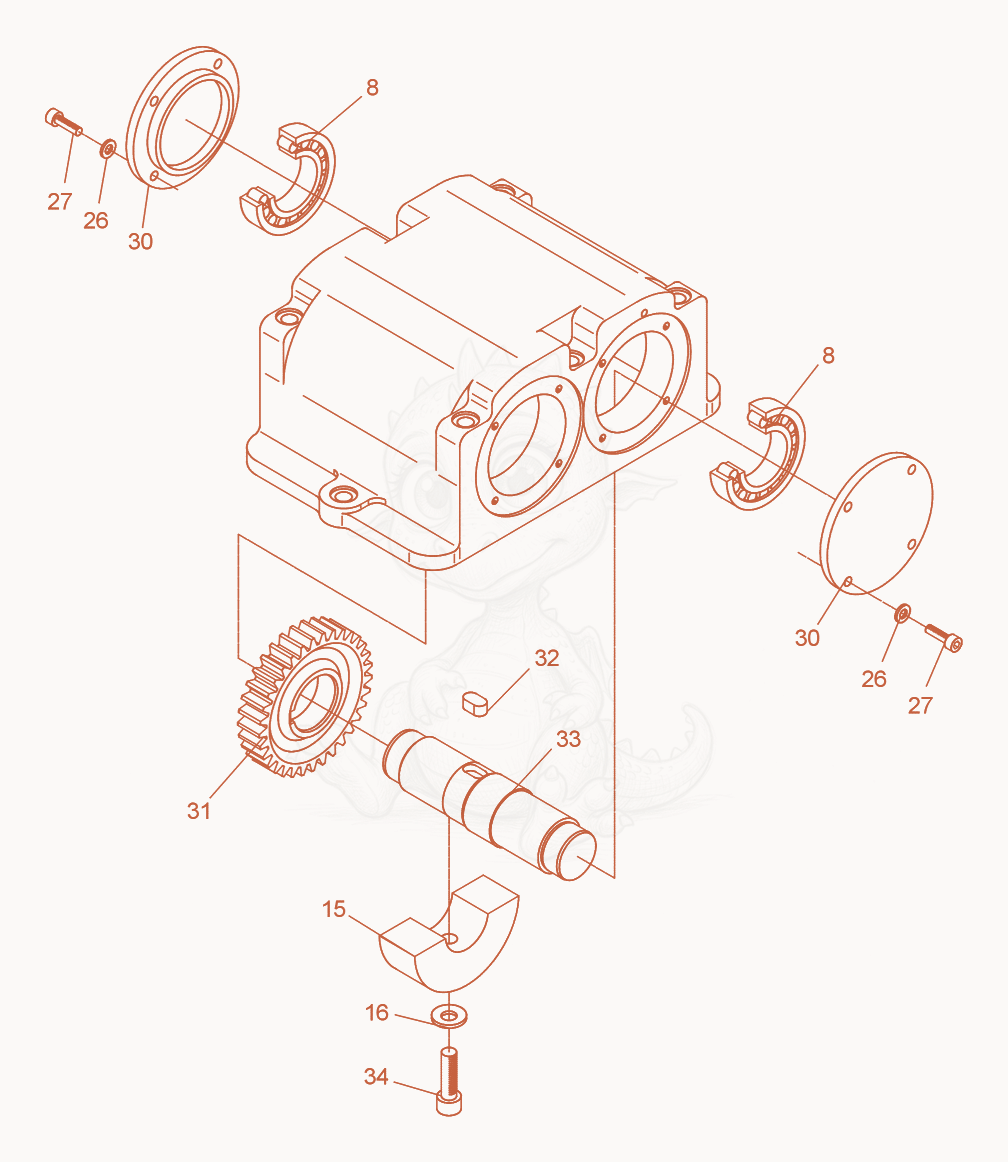

DPU2870 Exciter cpl. Diagram

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson DPU2870, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305000047050Not stocked
    Cover×2
  • 315000047057Price
    GEAR - 5000047057×1
  • 325000014844Price
    KEY A10 X 8 X 18 - 5000014844×1
  • 335000047062Price
    SHAFT-EXCITER DRIVE - 5000047062×1
  • 345000049125Price
    SCREW M10 X 35,GR 10.9 - 5000049125×2
