DPU2870-VIBROPLATE

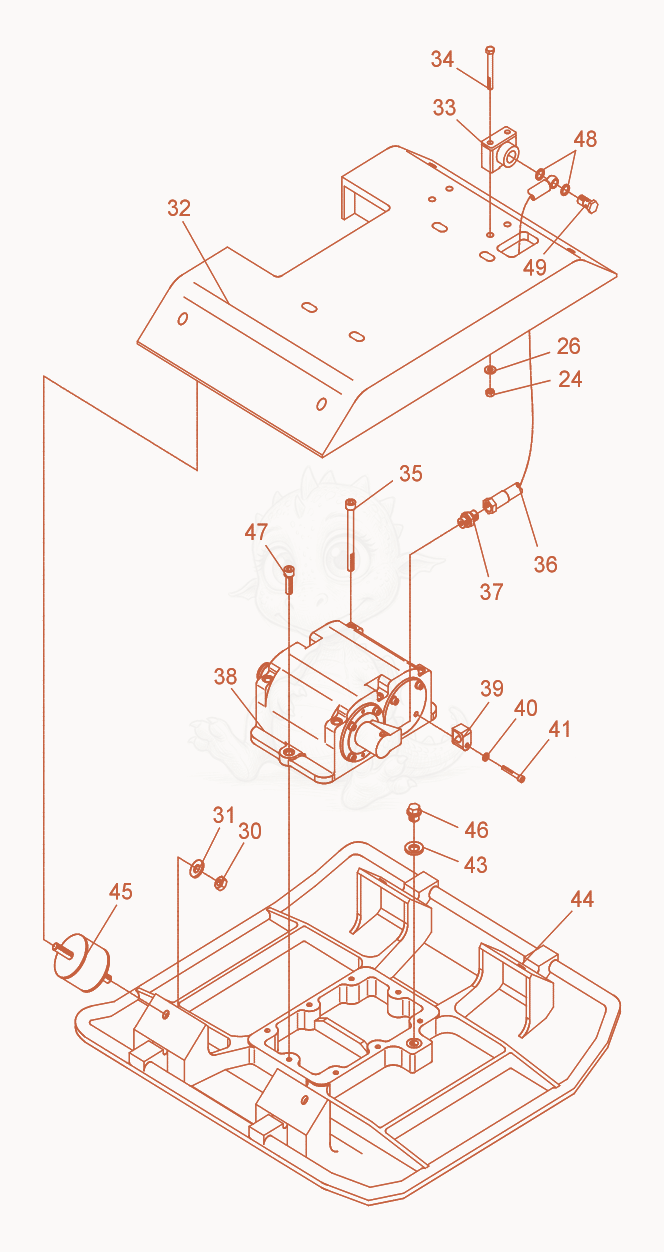

DPU2870 Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPU2870, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000065353Not stocked
    Insulating cushion×1
  • 5000065373Price
    KIT-HOSE REPLACEMENT,,2TE - 5000065373×1
  • 305000010884Price
    NUT M12 8,HEX - 5000010884×8
  • 315000031565Price
    WASHER-LOCK A12 - 5000031565×8
  • 325000047355Not stocked
    Upper mass×1
  • 335000039125Not stocked
    Fixing device cpl.×2
  • 345000011348Price
    SCREW M8 X 75 HX.HD. - 5000011348×4
  • 355000094073Price
    SCREW M10 X 120 10.9 - 5000094073×6
  • 365000069735Price
    HOSE-HYDRAULIC - 5000069735×1
  • 375000046461Price
    FITTING-PIPE L10R - 5000046461×1
  • 395000069727Price
    CLAMP LB318PP - 5000069727×1
  • 405000010624Price
    WASHER B6.4 FLAT - 5000010624×1
  • 415000011547Price
    SCREW M6 X 40 SOC.HD. - 5000011547×1
  • 435000014968Price
    SEAL-RING 16.7 X 24 X 1.5 - 5000014968×1
  • 445000099187Not stocked
    Base plate×1
  • 455002001685Not stocked
    Shockmount×4
  • 465000014535Price
    PLUG M16 X 1.5 ST - 5000014535×1
  • 475000049125Price
    SCREW M10 X 35,GR 10.9 - 5000049125×2
  • 485000125317Price
    GASKET A14X20 - 5000125317×2
  • 495000043201Price
    SCREW-HOLLOW 10-3 - 5000043201×1
