DPU100-70 VIBROPLATE

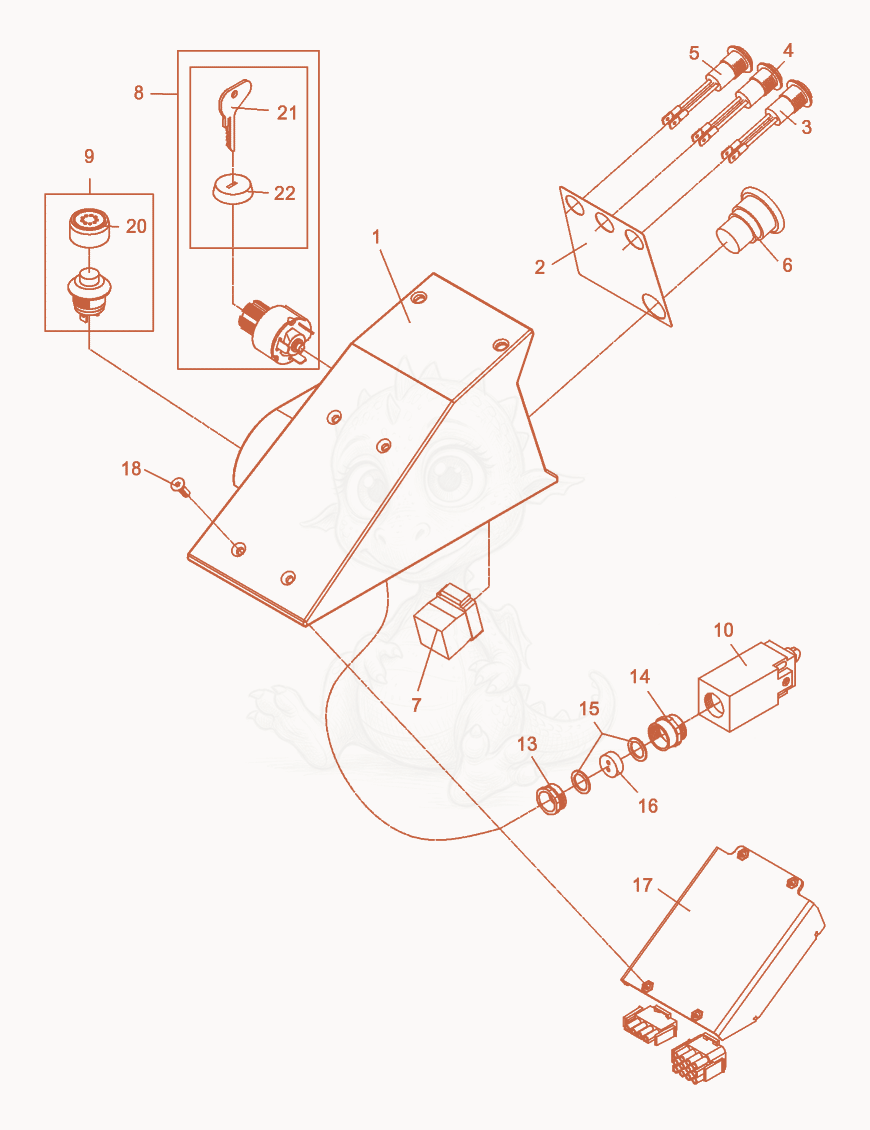

DPU100-70 Housing cpl. Diagram

Exploded parts diagram of the Housing cpl. of a Wacker Neuson DPU100-70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000205215Price
    Housing - 5000205215×1
  • 25000124729Price
    PANEL-CONTROL - 5000124729×1
  • 35000129797Price
    LIGHT-IGNITION PILOT LED - 5000129797×1
  • 45000129798Price
    LIGHT-PILOT OIL PRESSURE LED - 5000129798×1
  • 55000129799Price
    LIGHT-PILOT LED - 5000129799×1
  • 65000203521Price
    SWITCH-BUTTON - 5000203521×1
  • 75000203522Price
    Switch - 5000203522×1
  • 85000097657Not stocked
    Ignition starter switch×1
  • 95000044682Price
    SWITCH-PUSH BUTTON - 5000044682×1
  • 105000203523Price
    Switch - 5000203523×1
  • 135002000043Price
    SCREW-PRESSURE - 5002000043×1
  • 145002000051Price
    FITTING-COMPRESSION - 5002000051×1
  • 155002000047Price
    RING-THRUST - 5002000047×2
  • 165000124724Price
    PLUG-2 HOLE - 5000124724×1
  • 175000205211Price
    CONTROL UNIT - 5000205211×1
  • 185000202862Price
    SCREW-COUNTER SUNK M5 X 16 - 5000202862×4
  • 205000094711Not stocked
    Cap×1
  • 215000045129Price
    KEY-IGNITION SWITCH - 5000045129×1
  • 225000094674Price
    CAP-PROTECTIVE COVER,IGN.KEY - 5000094674×1
