DPU100-70 VIBROPLATE

DPU100-70 Valve cover - Cylinder Head Diagram

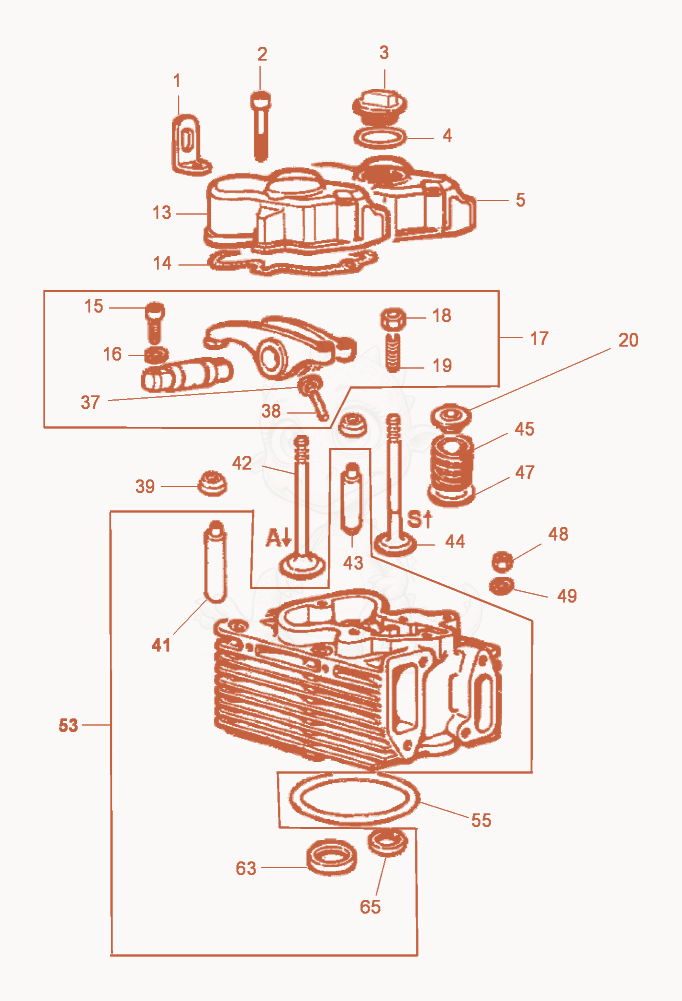

Exploded parts diagram of the Valve cover - Cylinder Head of a Wacker Neuson DPU100-70, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000063530Price
BRACKET-LIFTING EYE - 5000063530×2
25000084143Price
SCREW M8 X 50 - 5000084143×4
35000113750Price
CAP-OIL FILL - 5000113750×1
45000063533Not stocked
O-Ring×1
55000113749Price
COVER-VALVE W/HOLE - 5000113749×1
135000113748Price
COVER-VALVE W/O HOLE - 5000113748×1
145000063540Price
GASKET - 5000063540×2
155000083671Price
Bolt - 5000083671×4
165000082288Price
WASHER - 5000082288×4
175000063541Price
SET-ROCKER ARM REPLACEMENT - 5000063541×2
185000063551Price
NUT M7 X 1.0,HEX - 5000063551×4
195000063552Price
Screw - 5000063552×4
205000063777Price
PLATE-W/CONES,SPRING RETAINER - 5000063777×4
375000082081Price
Ring - 5000082081×2
385000063553Price
PIPE - 5000063553×2
395000110762Price
CAP-INTAKE GUIDE - 5000110762×4
415000110761Price
VALVE-INTAKE GUIDE - 5000110761×2
425000155204Price
VALVE-INTAKE - 5000155204×2
435000082205Price
GUIDE-EXHAUST VALVE - 5000082205×2
445000155203Price
VALVE-EXHAUST - 5000155203×2
455000118941Price
spring - 5000118941×4
475000063545Price
Washer - 5000063545×4
485000084177Price
Nut - 5000084177×8
495000082300Price
Washer - 5000082300×8
535000150998Not stocked
Cylinder Head cpl.×2
555000117092Not stocked
Cylinder head gasket×2
555000117093Price
GASKET-CYLINDER (0.55MM) - 5000117093×2
555000117094Price
GASKET-CYLINDER (0.60MM) - 5000117094×2
555000117095Not stocked
Cylinder head gasket×2
555000117096Not stocked
Cylinder head gasket×2
555000117097Price
GASKET-CYLINDER (0.75MM) - 5000117097×2
555000117098Not stocked
Cylinder head gasket×2
555000117099Price
GASKET-CYLINDER (0.85MM) - 5000117099×2
555000117100Price
GASKET-CYLINDER (0.90MM) - 5000117100×2
555000117101Price
GASKET-CYLINDER (0.95MM) - 5000117101×2
635000082307Price
SEAT-INTAKE VALVE - 5000082307×2
655000082308Price
SEAT-EXHAUST VALVE - 5000082308×2
