CRT48-35V

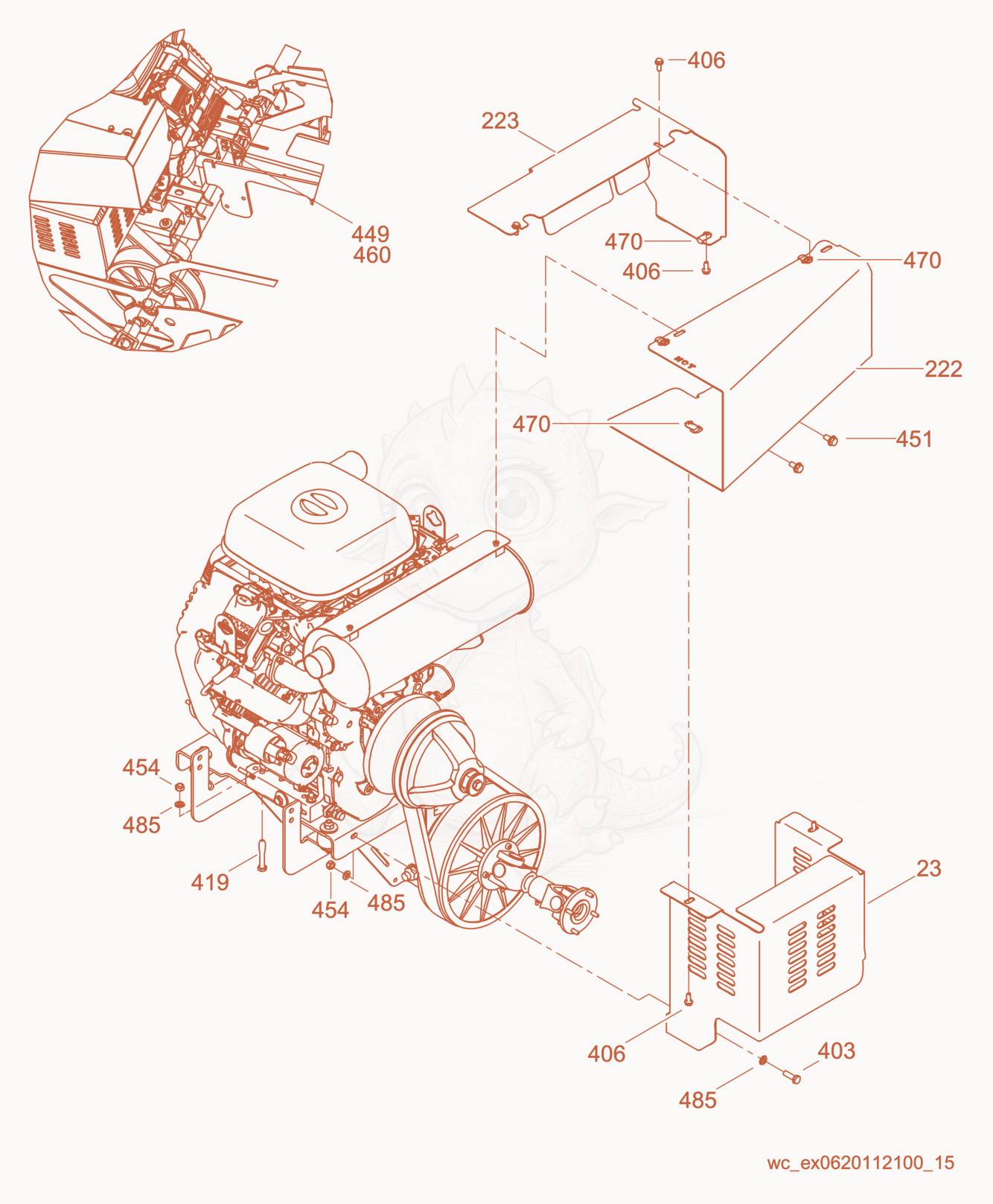

CRT48-35VEU Engine Compartment Diagram

Exploded parts diagram of the Engine Compartment of a Wacker Neuson CRT48-35VEU, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 235000165056Price
    BELTGUARD-CRT,33V P-5000176420 - 5000165056×1
  • 2225000170974Price
    HEATSHIELD-35V P-5000176420 - 5000170974×1
  • 2235000171009Price
    HEATSHIELD-TOP 35V P-5000176420 - 5000171009×1
  • 4035000011457Price
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 4065000028949Price
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×5
  • 4195000011344Not stocked
    Hexagonal head cap screw×4
  • 4495000028404Price
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×8
  • 4515000165521Price
    SCREW M10X1.5X16,SOC.BUTTON - 5000165521×2
  • 4545000010367Price
    NUT-LOCK M8 HEX - 5000010367×5
  • 4605000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
  • 4705000150959Price
    NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×5
  • 4855000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×6
