CRT48-31V RIDE-ON TROWEL

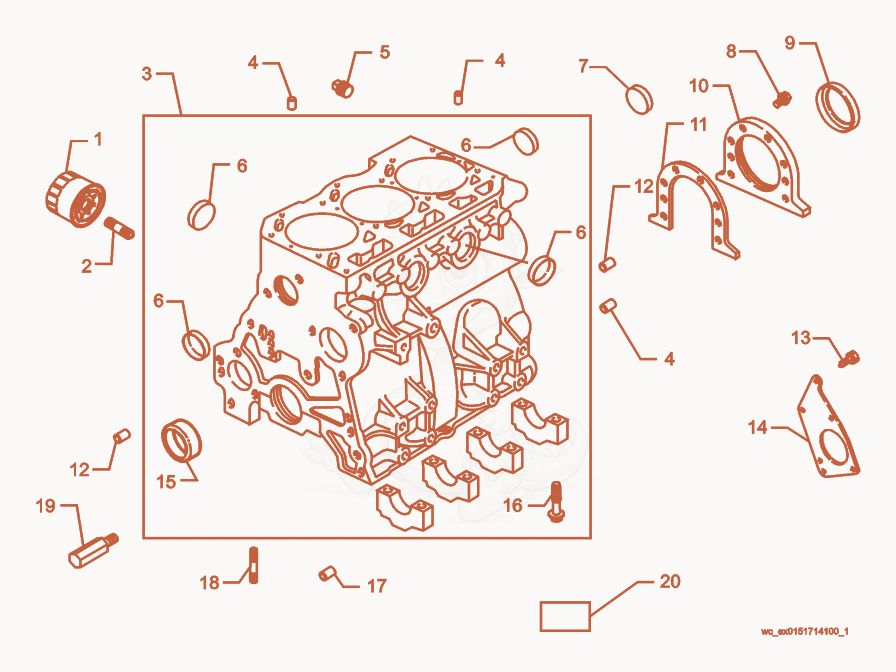

CRT48-31V Engine Block Diagram
- FILTER-OIL, ENGINE - 5000079777×1
- Adapter - 5000157776×1
- 35000216246Not stockedCylinder cpl.×1
- Pin - 5000157778×3
- Plug - 5000157779×1
- PLUG-WELCH - 5000157780×4
- PLUG-WELCH - 5000157781×1
- Screw - 5000157782×2
- SEAL-OIL - 5000157783×1
- 105000157784Not stockedLock×1
- GASKET - 5000157785×1
- pin - 5000157786×2
- Screw - 5000157787×6
- BRACKET-MOUNTING - 5000157788×1
- 155000157789Not stockedBushing×1
- Screw - 5000157790×1
- Pin - 5000157791×1
- STUD - 5000157792×1
- JET-LUBRICATION - 5000157793×1
- KIT-LABEL - 5000157794×1
