CRT48-31V RIDE-ON TROWEL

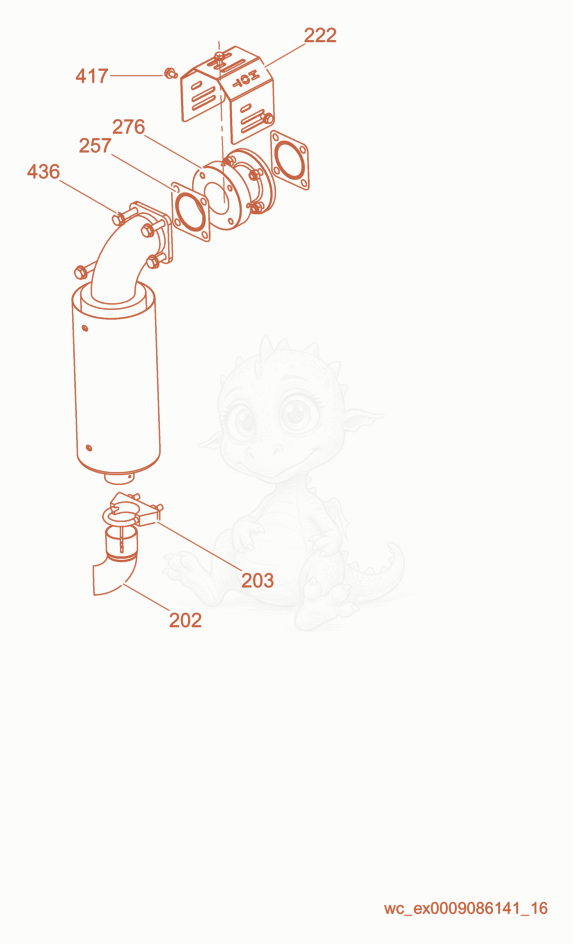

CRT48-31V Exhaust Mount Diagram

Exploded parts diagram of the Exhaust Mount of a Wacker Neuson CRT48-31V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2025000175814Price
    PIPE-EXHAUST - 5000175814×1
  • 2035000111081Price
    CLAMP-EXHAUST - 5000111081×1
  • 2225000154997Not stocked
    Heatshield×1
  • 2575000154991Price
    GASKET-MUFFLER - 5000154991×1
  • 2765000154990Not stocked
    Tube×1
  • 4175000073164Price
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×2
  • 4365000085957Price
    SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×4
