CRT36ASO-RIDE-ON TROWEL

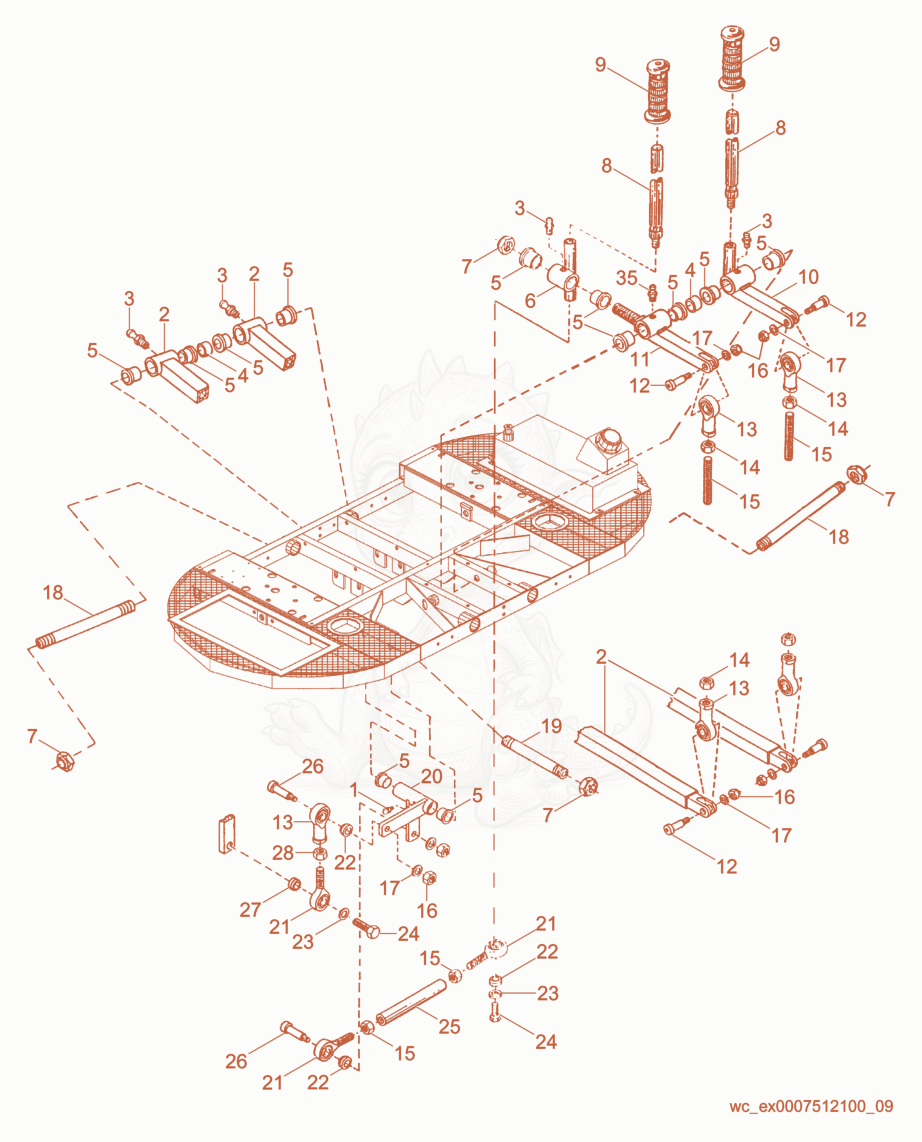

CRT36ASO Steering Lever Diagram

Exploded parts diagram of the Steering Lever of a Wacker Neuson CRT36ASO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000087933Not stocked
    Grease fitting×1
  • 25000088003Not stocked
    Control arm×2
  • 35000088128Not stocked
    Grease fitting×5
  • 45000087986Not stocked
    Spacer×1
  • 55000087959Not stocked
    Bushing×12
  • 65000087998Not stocked
    Lever×1
  • 75000088028Not stocked
    Lock nut×6
  • 85000087997Not stocked
    Lever×2
  • 95000087916Not stocked
    Grip handle×2
  • 105000087999Not stocked
    Yoke×1
  • 115000087979Not stocked
    Yoke lever×1
  • 125000087993Not stocked
    Bolt×4
  • 135000087937Not stocked
    Connector×5
  • 145000025627Not stocked
    Nut×6
  • 155000087957Not stocked
    Rod×2
  • 165000025723Price
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×6
  • 175000087930Not stocked
    Flat washer×6
  • 185000087990Not stocked
    Shaft×2
  • 195000087996Not stocked
    Shaft×1
  • 205000088001Not stocked
    Fulcrum pivot×1
  • 215000088129Not stocked
    Eye bolt×3
  • 225000088012Not stocked
    Spacer×3
  • 235000025650Not stocked
    Lock washer×2
  • 245000025562Not stocked
    Hexagonal head cap screw×2
  • 255000088000Not stocked
    Control arm×1
  • 265000087994Not stocked
    Bolt×2
  • 275000088013Not stocked
    Spacer×1
  • 285000088040Not stocked
    Nut×1
