CRT36ASO-RIDE-ON TROWEL

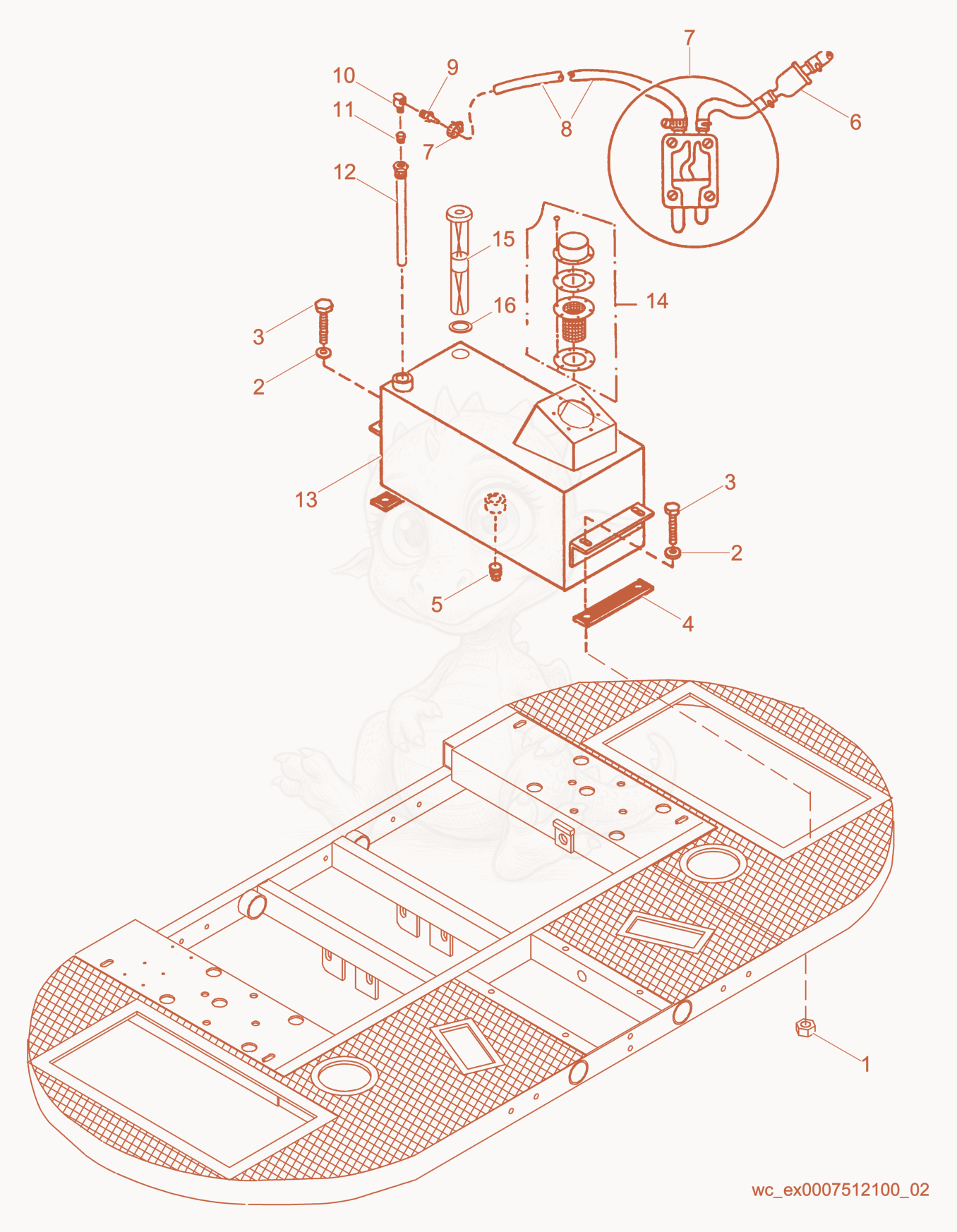

CRT36ASO Fuel System Diagram
- 15000087941Not stockedLock nut×4
- WASHER 1/4 NOM,STEEL,FLAT - 5000025635×4
- 35000025544Not stockedHexagonal head cap screw×4
- 45000088002Not stockedPad×2
- PLUG 1/4-18NPT,SQ.HD.PIPE - 5000025605×1
- 65000087955Not stockedFilter×1
- 75000087936Not stockedHose clamp×2
- 85000087935Not stockedFuel hose×1
- 95000087864Not stockedHose fitting×1
- 105000087865Not stockedElbow fitting×1
- 115000087872Not stockedCoupling×1
- 125000087974Not stockedTube×1
- 135000088245Not stockedFuel tank×1
- 145000088246Not stockedFuel tank cap×1
- 155000110197Not stockedFuel gauge×1
- BUSHING-FUEL GAUGE - 5000088166×1
