CRT36-24A RIDE-ON TROWEL

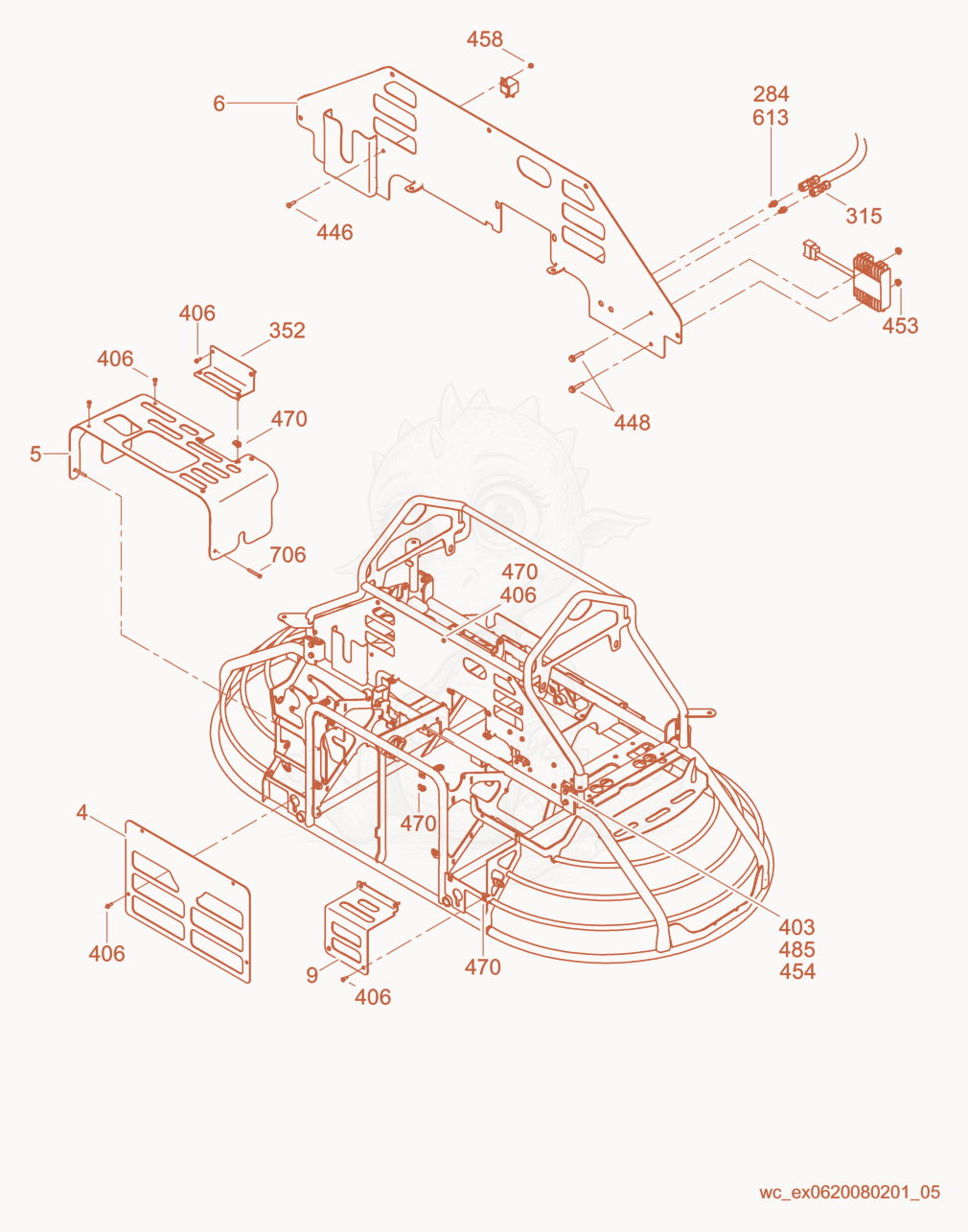

CRT36-24A Panel cpl. Diagram

Exploded parts diagram of the Panel cpl. of a Wacker Neuson CRT36-24A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000164886Price
    PLATE-FRONT,CRT36 P-5000112006 - 5000164886×1
  • 55000164893Price
    PLATE-FOOT ASSY,36 P-5000176420 - 5000164893×1
  • 65000164887Not stocked
    Plate cpl.×1
  • 95000164889Not stocked
    Deck plate×1
  • 3525000172321Not stocked
    Plate×1
  • 4035000011457Price
    SCREW M8 X 25 HX.HD. - 5000011457×8
  • 4065000028949Price
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×21
  • 4465000011477Price
    SCREW M5 X 12 HX.HD. - 5000011477×1
  • 4485000111218Price
    SCREW M6 X 30,HX.HD,SER - 5000111218×2
  • 4535000029117Price
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 4545000010367Price
    NUT-LOCK M8 HEX - 5000010367×8
  • 4585000010369Price
    NUT-LOCK M5 HEX. - 5000010369×1
  • 4705000150959Price
    NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×19
  • 4855000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 7065000011331Price
    SCREW M6 X 50 HX.HD. - 5000011331×2
