CRT36-24A RIDE-ON TROWEL

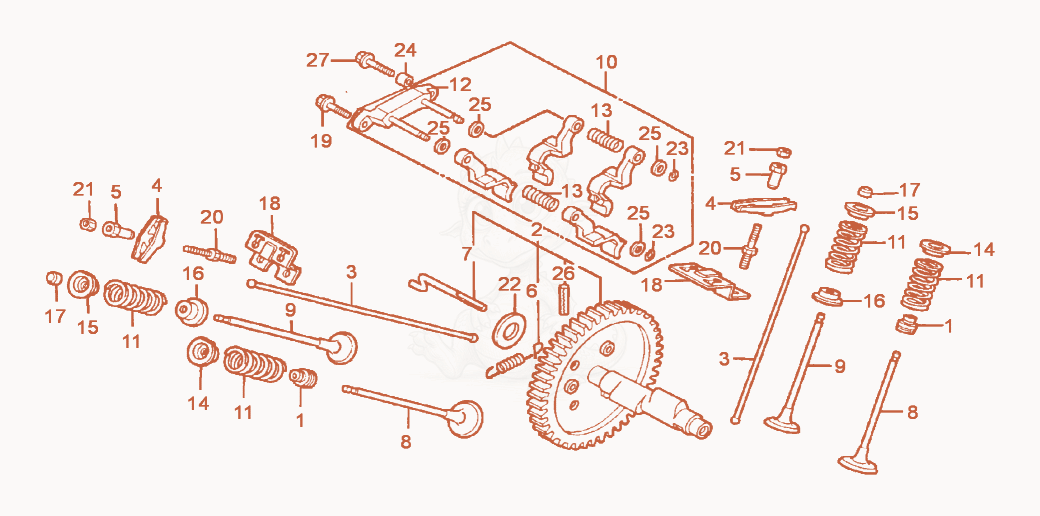

CRT36-24A Camshaft Diagram

Exploded parts diagram of the Camshaft of a Wacker Neuson CRT36-24A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000151750Price
    SEAL-VALVE STEM - 5000151750×2
  • 25000152330Price
    CAMSHAFT-ASSY - 5000152330×1
  • 35000152331Price
    ROD-PUSH - 5000152331×4
  • 45000074675Price
    ROCKER ARM-VALVE - 5000074675×4
  • 55000070985Price
    PIVOT-ROCKER ARM - 5000070985×4
  • 65000152333Price
    SPRING-RETURN,WEIGHT - 5000152333×1
  • 75000152334Price
    PIN-DECOMPRESSION - 5000152334×1
  • 85000075818Price
    VALVE-INTAKE - 5000075818×2
  • 95000075819Price
    VALVE-EXHAUST - 5000075819×2
  • 105000152335Price
    TAPPET-ASSY,VALVE - 5000152335×1
  • 115000074683Price
    SPRING-ENGINE VALVES - 5000074683×4
  • 125000152336Price
    SHAFT-VALVE,TAPPET - 5000152336×1
  • 135000152337Price
    SPRING-VALVE TAPPET - 5000152337×2
  • 145000074684Not stocked
    Spring holder×2
  • 155000074685Price
    HOLDER-EXHAUST VALVE SPRING - 5000074685×2
  • 165000074659Price
    SEAT-VALVE SPRING - 5000074659×2
  • 175000074666Price
    VALVE-ROTATOR,ENGINE - 5000074666×2
  • 185000074676Price
    PLATE-PUSH ROD GUIDE - 5000074676×2
  • 195000152338Price
    BOLT-FLANGE 5X16 - 5000152338×1
  • 205000072778Price
    STUD-ROCKER ARM PIVOT - 5000072778×4
  • 215000070984Price
    NUT 1/4-28,PIVOT ADJUSTMENT - 5000070984×4
  • 225000151777Price
    WASHER-THRUST (17.2MM) - 5000151777×1
  • 235000081615Price
    RET.RING 7.7MM,FORM C - 5000081615×2
  • 245000152342Price
    PIN-A,DOWEL 8X12 - 5000152342×1
  • 255000071639Price
    WASHER 6MM,PLAIN - 5000071639×4
  • 265000152343Price
    PIN-SPRING 6X28 - 5000152343×1
  • 275000071081Price
    SCREW M6 X 25,HX.FLANGE - 5000071081×1
