BRS90

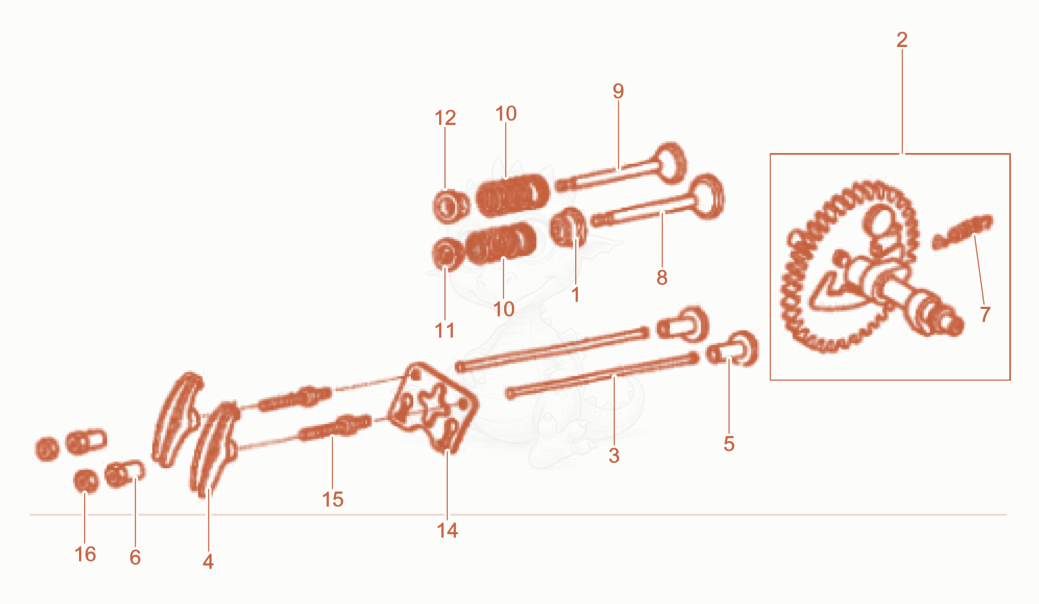

BRS90 Camshaft Diagram

Exploded parts diagram of the Camshaft of a Wacker Neuson BRS90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066375Not stocked
    Gasket×1
  • 25100050572Price
    Camshaft - 5100050572×1
  • 35000071637Price
    ROD-PUSH - 5000071637×2
  • 45100051320Not stocked
    Rocker arm×2
  • 55000070990Price
    TAPPET-VALVE,ENGINE - 5000070990×2
  • 65100036280Not stocked
    Pivot×2
  • 75000151028Price
    SPRING-WEIGHT RETURN - 5000151028×1
  • 85100050573Price
    Intake valve - 5100050573×1
  • 95100005442Not stocked
    Outlet valve×1
  • 105000081760Price
    SPRING-ENGINE VALVE - 5000081760×2
  • 115100050574Not stocked
    Plate×1
  • 125100050574Not stocked
    Plate×1
  • 145000073265Price
    PLATE - 5000073265×1
  • 155000072778Price
    STUD-ROCKER ARM PIVOT - 5000072778×2
  • 165000070984Price
    NUT 1/4-28,PIVOT ADJUSTMENT - 5000070984×2
