AP2560e

AP2560E Trolley cpl. Diagram

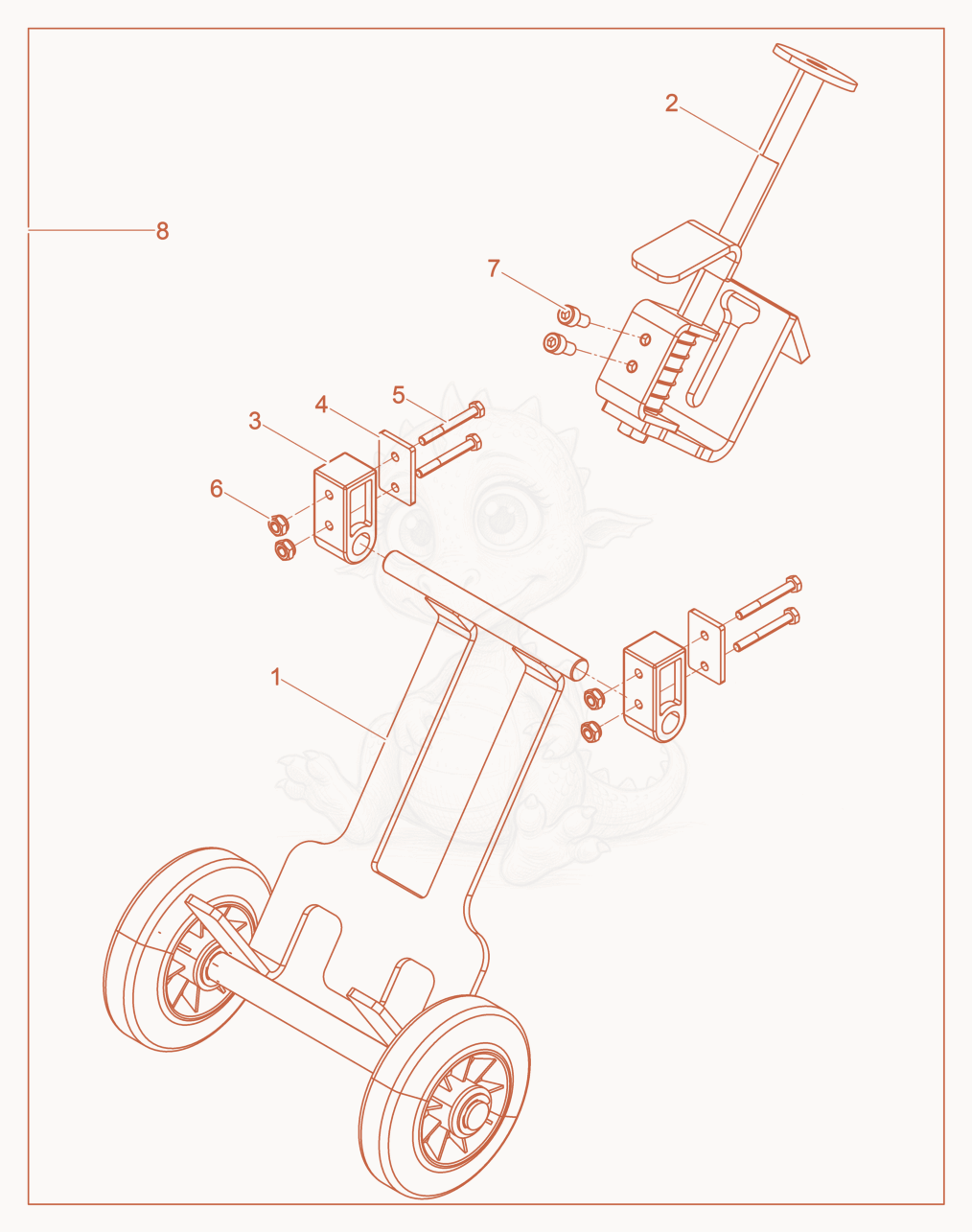

Exploded parts diagram of the Trolley cpl. of a Wacker Neuson AP2560E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000108248Not stocked
    Trolley×1
  • 25000108249Price
    Lock cpl. - 5000108249×1
  • 35000108286Price
    Fixing device - 5000108286×2
  • 45000108256Price
    Bar - 5000108256×2
  • 55000011331Price
    SCREW M6 X 50 HX.HD. - 5000011331×4
  • 65000010368Price
    NUT-LOCK M6 HEX. - 5000010368×5
  • 75000011544Price
    SCREW M8 X 16 SOC.HD. - 5000011544×2
  • 85000201979Not stocked
    Trolley cpl.×1
