AP2560e

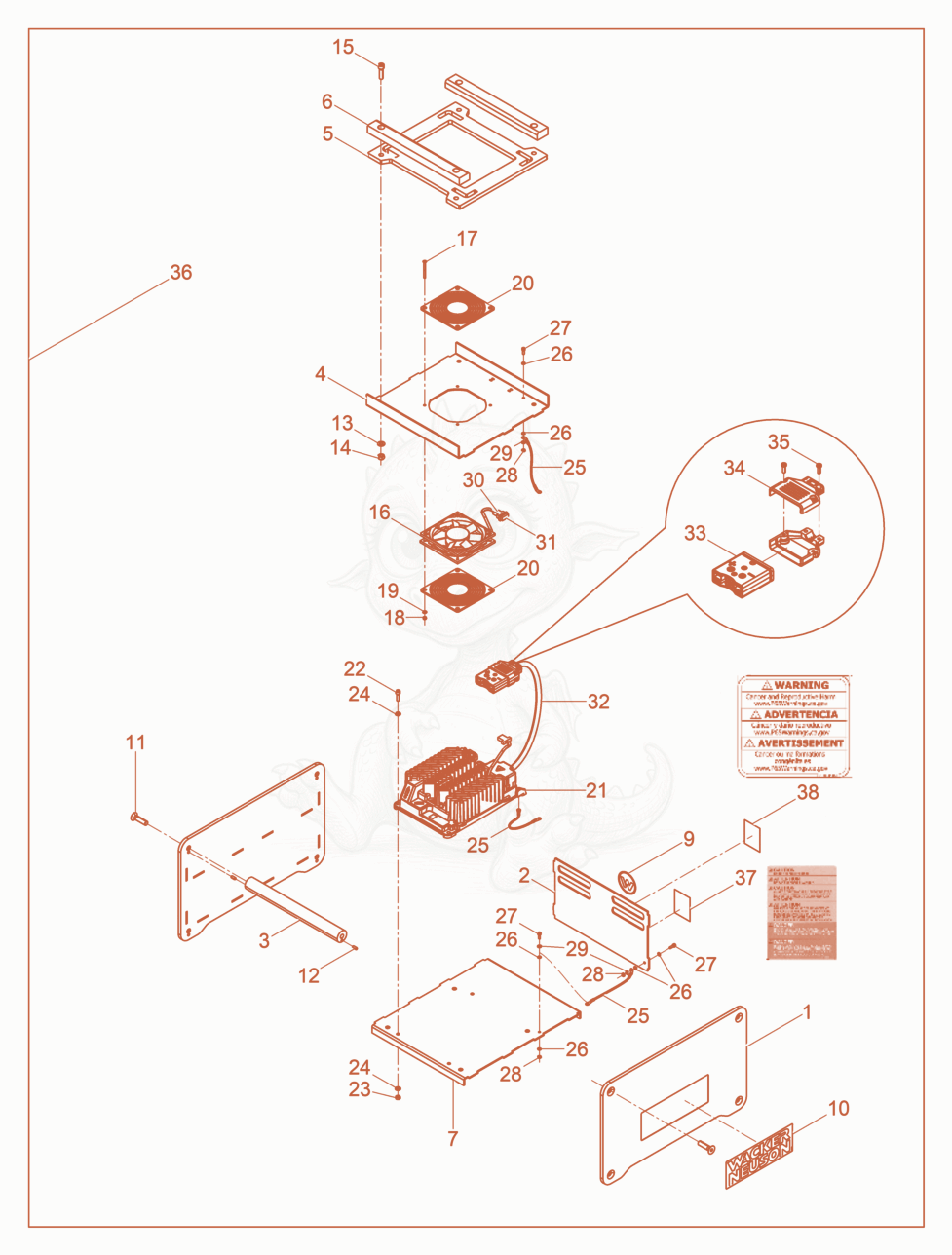

AP2560E Battery charger C 48/13 US Diagram
- 5100028195PriceAC Cable - 5100028195×1
- Plate - 5100002644×2
- Plate - 5100002647×1
- Connecting Rod - 5100002673×4
- Plate - 5100002703×1
- Rubber plate - 5100002720×1
- Bar - 5100003170×2
- Plate - 5100002789×1
- Decal symbol 56 - 5000222085×1
- Label - 5000222130×2
- Countersunk bolt - 5000206837×8
- PIN 5 X 12 ROLLED - 5000013591×8
- WASHER-FLAT,M8,ZINC - 5000010622×4
- 145000011541Not stockedCheese head screw×4
- NUT-LOCK VM8 HEX - 5000033356×4
- Fan - 5100004447×1
- Countersunk bolt M4x45 - 5100005910×4
- NUT VM4-8 HEX - 5000105210×4
- 195000010628Not stockedFlat washer×4
- Screen grid - 5100005889×2
- battery charger - 5100028169×1
- SCREW M6 X 20 SOC.HD. - 5000011551×4
- NUT M6 8,HEX - 5000010880×4
- WASHER B6.4 FLAT - 5000010624×8
- Ground wire 2,5 qmm - 5100034450×3
- Contact disk 4 - 5100004421×6
- 275000011571Not stockedCheese head screw×3
- NUT M4 8,HEX. - 5000010872×3
- 295000010628Not stockedFlat washer×3
- Plug cap - 5100005908×1
- Plug - 5100005909×2
- charging cable - 5100004465×1
- Plug cpl. - 5100001742×1
- cord grip - 5100008927×2
- SCREW-PAN HD. - 5000213543×4
- 365100028231Not stockedBattery charger C 48/13 US×1
- Label SDcl_ANSI Warning charger - 5100069226×1
- LABEL-PROPOSITION 65 GENERAL - 5100045462×1
