803-2

803-2 Auxiliary hydr double action (Option) Diagram

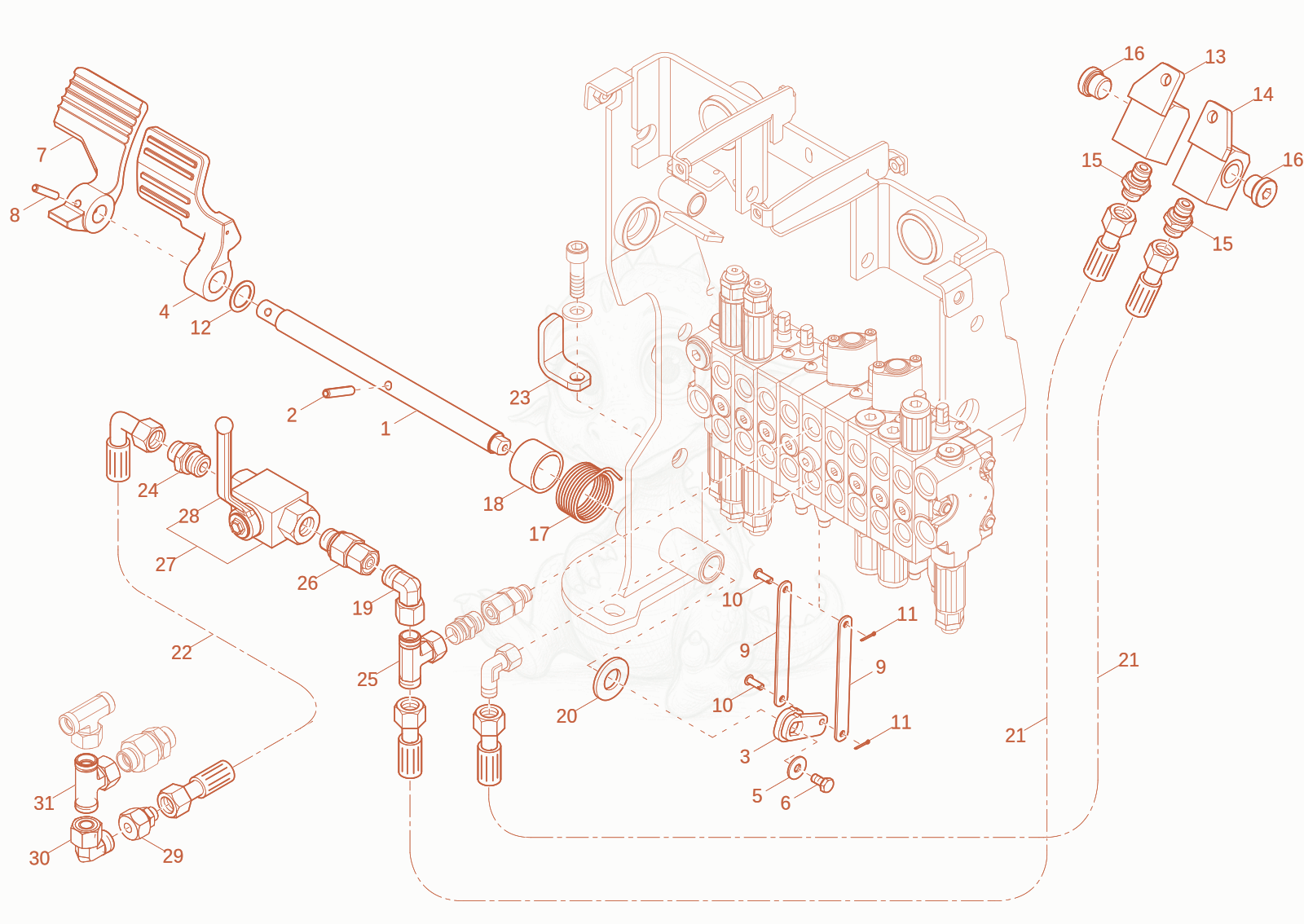

Exploded parts diagram of the Auxiliary hydr double action (Option) of a Wacker Neuson 803-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000171313Not stocked
    shaft×1
  • 21000085648Price
    cotter pin - 1000085648×1
  • 31000275058Price
    LEVER - 1000275058×1
  • 41000256128Price
    pedal - 1000256128×1
  • 51000095343Price
    washer A 6,4 St A2C DIN9021 - 1000095343×1
  • 61000020553Not stocked
    hex screw×1
  • 71000256139Price
    pedal - 1000256139×1
  • 81000082718Price
    cotter pin - 1000082718×1
  • 91000150901Price
    plate - 1000150901×2
  • 101000150905Price
    PIN - 1000150905×2
  • 111000280926Price
    COTTERPIN - 1000280926×2
  • 121000161661Price
    FITTING DISC - 1000161661×1
  • 131000151033Price
    block - 1000151033×1
  • 141000151034Price
    block - 1000151034×1
  • 151000015490Not stocked
    screw joint×2
  • 161000020797Not stocked
    screw joint×2
  • 171000256410Not stocked
    spring×1
  • 181000256441Price
    BUSHING - 1000256441×1
  • 191000015510Not stocked
    screw joint×1
  • 201000082679Price
    Washer M16-DIN134 - 1000082679×1
  • 211000265752Price
    SLHYDR 2SC 10 PN10 0 PN10 0 L1750 S - 1000265752×2
  • 221000168182Price
    SLHYDR 1SC 10 PN10 90 PN10 0 L500,0 - 1000168182×1
  • 231000256405Price
    limit stop - 1000256405×1
  • 241000015491Not stocked
    screw joint×1
  • 251000085057Price
    ET10LOMDA3C - 1000085057×1
  • 261000028676Not stocked
    screw joint×1
  • 271000064777Not stocked
    ball valve×1
  • 281000172516Price
    SW09 GEKRÖPFT - 1000172516×1
  • 291000020688Not stocked
    screw joint×1
  • 301000015512Not stocked
    screw joint×1
  • 311000085108Price
    ET15LOMDA3C - 1000085108×1
