803-2

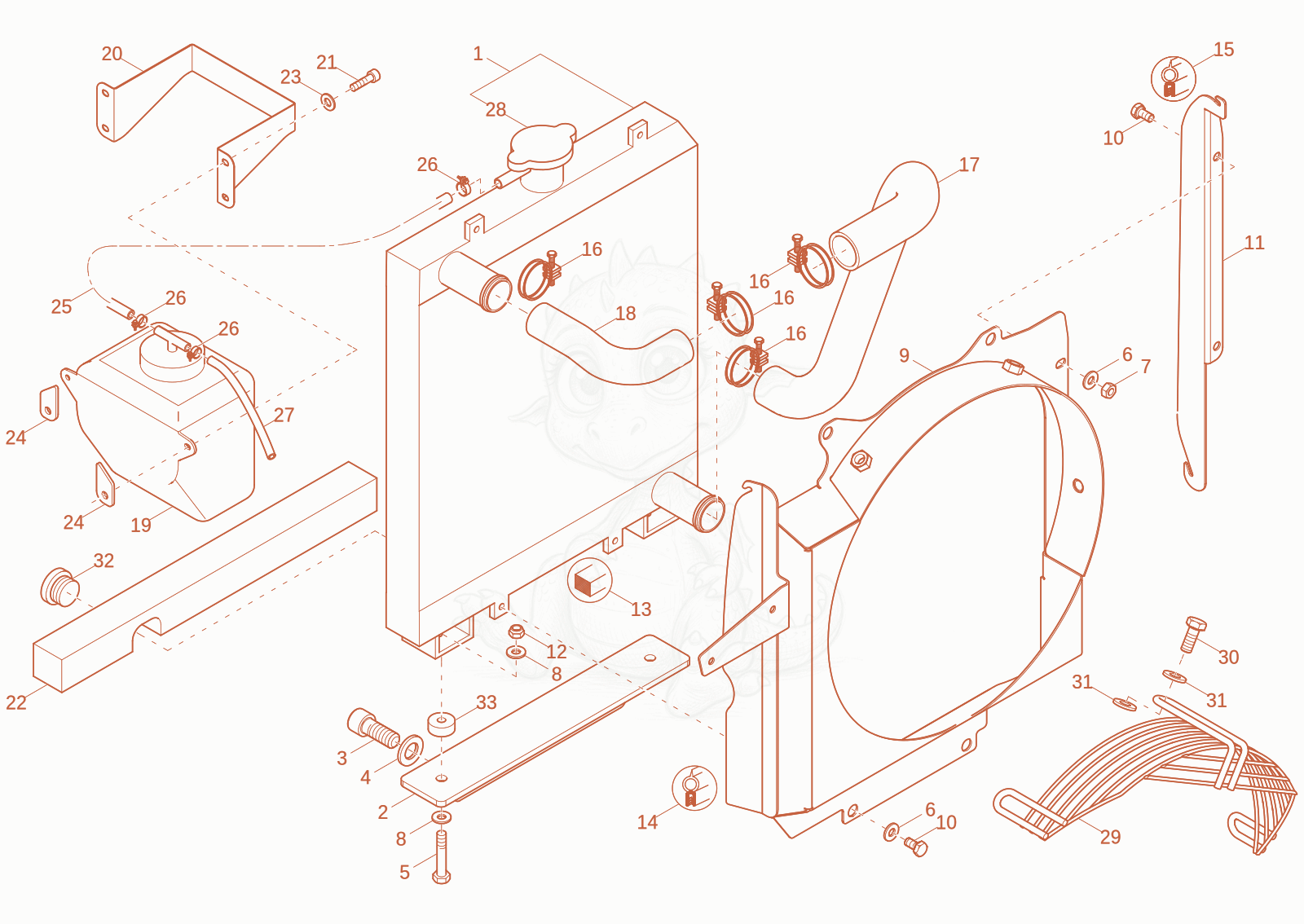

803-2 COOLER Diagram
- 11000327507Not stockedwater cooler×1
- 21000256108Not stockedbracket cooler×1
- allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×2
- washer 13 -DIN134 - 1000082638×2
- 51000015339Not stockedhex screw×2
- washer M6,4-DIN134 - 1000094966×6
- 71000015405Not stockedhexagon nut×2
- washer A 6,4 St A2C DIN9021 - 1000095343×4
- cooler plate - 1000256109×1
- 101000020553Not stockedhex screw×6
- AIR GUIDING PLATE - 1000256110×1
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- seal strap foam 10x15 - 1000098196×1.5
- rubber profile 1,5-3mm - 1000098164×0.5
- rubber profile 1,5-3mm - 1000098164×0.3
- HOSE CLAMP 26-38mm - 1000083306×4
- WATER HOSE - 1000261322×1
- WATER HOSE - 1000261323×1
- TANK COOLANT OVERFLOW - 1000190121×1
- clamp bar - 1000129364×1
- allen screw M5x20-8.8 A2C DIN912 - 1000085452×4
- 221000500755Not stockedinsulating mat×1
- washer X-1000092302 - 1000095342×4
- shim - 1000129363×2
- 251000411932Not stockedfuel line×0.75
- clamp hose 15.3 - 1000267809×3
- 271000411932Not stockedfuel line×0.4
- COOLER CAP - 1000164850×1
- protecting screen - 1000261142×1
- 301000013008Not stockedhex screw×3
- 311000013027Not stockedwasher×6
- 321000022438Not stockedscrew joint×1
- rubber disc - 1000288817×2
