75Z3 3. HYDRAULIC CIRCUIT (OPTION) Diagram

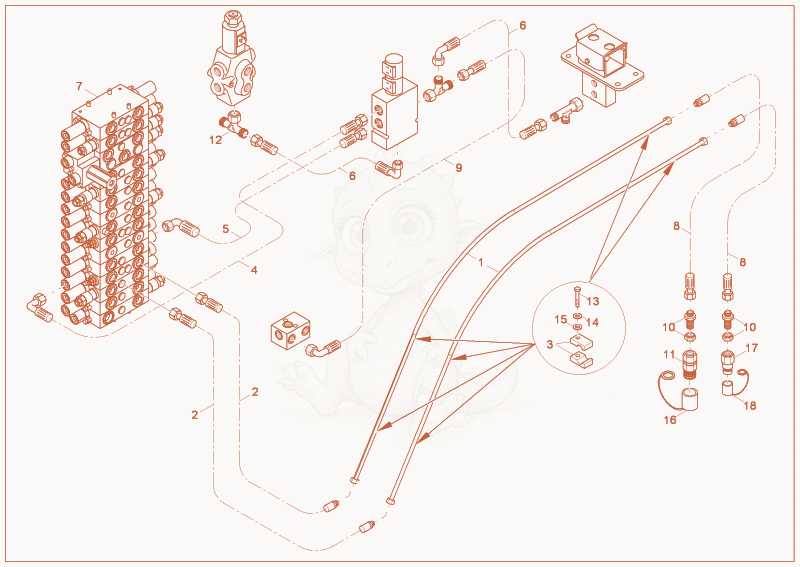

Exploded parts diagram of the 3. HYDRAULIC CIRCUIT (OPTION) of a Wacker Neuson 75Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000115111Not stocked
    pipe line×2
  • 21000160980Not stocked
    Hose×2
  • 31000115115Price
    pipe clamp - 1000115115×12
  • 41000076540Not stocked
    Hose×1
  • 51000358743Not stocked
    Hose×1
  • 61000076662Not stocked
    Hose×2
  • 71000147382Not stocked
    valve block×1
  • 81000125176Not stocked
    Hose×2
  • 91000076406Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1500 0 - 1000076406×1
  • 101000021217Not stocked
    lock screw connection×2
  • 111000109378Not stocked
    quick lock coupling×1
  • 121000015518Price
    ET08LOMDA3C - 1000015518×1
  • 131000085357Price
    hex screw - 1000085357×6
  • 141000015438Not stocked
    lock washer×6
  • 151000015434Not stocked
    washer×6
  • 161000109417Price
    Protection cap - 1000109417×1
  • 171000109377Not stocked
    quick lock coupling×1
  • 181000109416Price
    Protection cap - 1000109416×1
