WN Excavator 75Z3

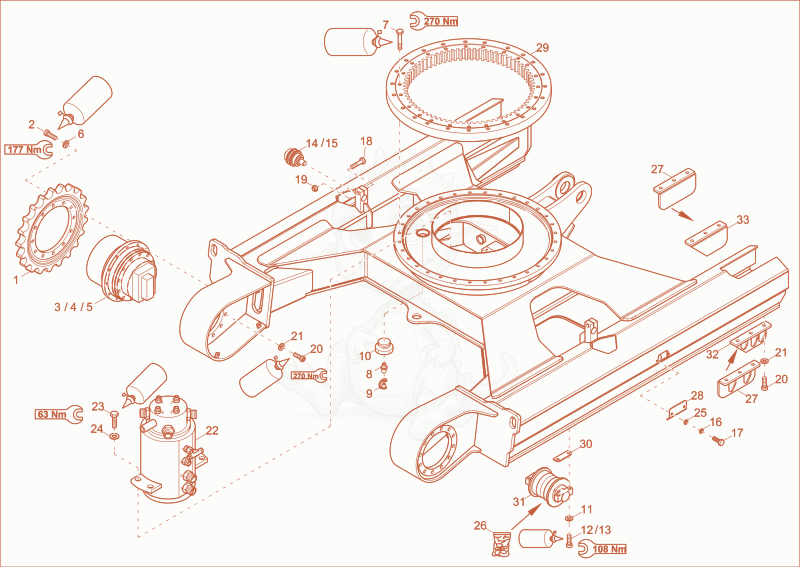

75Z3 TRACKLAYING GEAR (OPTION STEEL CHAIN) Diagram
- Drivewheel 1000124816×2
- cheese head screw - 1000085517×24
- 31000129006Not stockeddrive unit×2
- 41000114115Not stockeddrive unit×2
- Drive Unit 1000154507×2
- WASHER - 1000082669×24
- hex screw - 1000082284×32
- 81000015476Not stockedgrease nipple×1
- 91000015480Not stockedcap grease nipple×1
- plug - 1000082794×1
- washer 13 -DIN134 - 1000082638×40
- allen screw M12x50 10.9 - 1000085512×40
- CHEESE HEAD SCREWS - 1000085513×40
- 141000012855Not stockedsupport roller×2
- 151000130916Not stockedsupport roller×2
- 161000015438Not stockedlock washer×4
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
- hex screw M16x70 - 1000085371×2
- 191000020788Not stockedhexagon nut×2
- 201000015383Not stockedcheese head screw×36
- 211000015451Not stockednorthlock disc×36
- 221000398772Not stockedrotary junction×1
- 231000015348Not stockedhex screw×4
- 241000015449Not stockednorthlock disc×4
- washer 10,5 A2C DIN125 - 1000015432×4
- SEAL KIT - 1000075464×10
- Chainprotection 1000130567×4
- cover chain tensioner - 1000075396×2
- 291000391491Not stockedslewing ring×1
- shim - 1000137628×20
- 311000012853Not stockedroller×10
- 321000396474Not stockedchain protection×2
- 331000396472Not stockedchain protection×2
