Excavator 50Z3

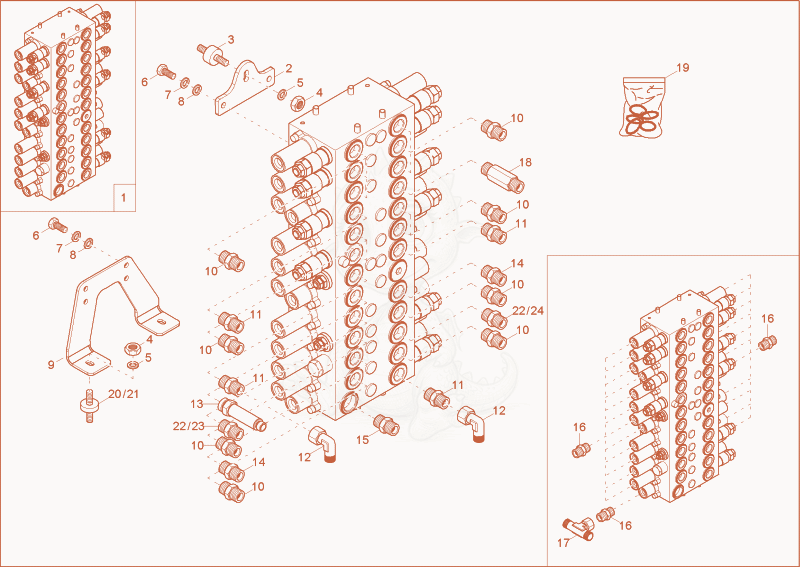

50Z3 CONTROL VALVE 1 (OPTION) Diagram
- 11000147377Not stockedvalve block×1
- fasten plate - 1000108286×1
- 31000079864Not stockedrubber buffer×1
- nut M10-8 A2C-DIN985 - 1000015408×3
- 51000015434Not stockedwasher×3
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
- 71000015438Not stockedlock washer×4
- washer 10,5 A2C DIN125 - 1000015432×4
- Fastenplate 1000116896×1
- GE15LR1/2OROMDA3C - 1000082964×14
- GE18LR1/2OROMDA3C - 1000083048×4
- 121000015513Not stockedscrew joint×2
- 131000112355Not stockedscrew connection×1
- GE12LR1/2OROMDA3C - 1000082970×2
- GE22LR3/4OROMDA3C - 1000082977×1
- GE08LR1/4OROMDA3C - 1000082963×24
- ET08LOMDA3C - 1000015518×1
- 181000082974Not stockedscrew joint×1
- SEAL KIT CONTROL VALVE - 1000126639×1
- 201000079864Not stockedrubber buffer×2
- 211000132877Not stockedrubber buffer×2
- GE12LR1/2OROMDA3C - 1000082970×2
- GE10LR1/2OROMDA3C - 1000141556×1
- GE08LR1/2OROMDA3C - 1000128862×1
