Excavator 50Z3

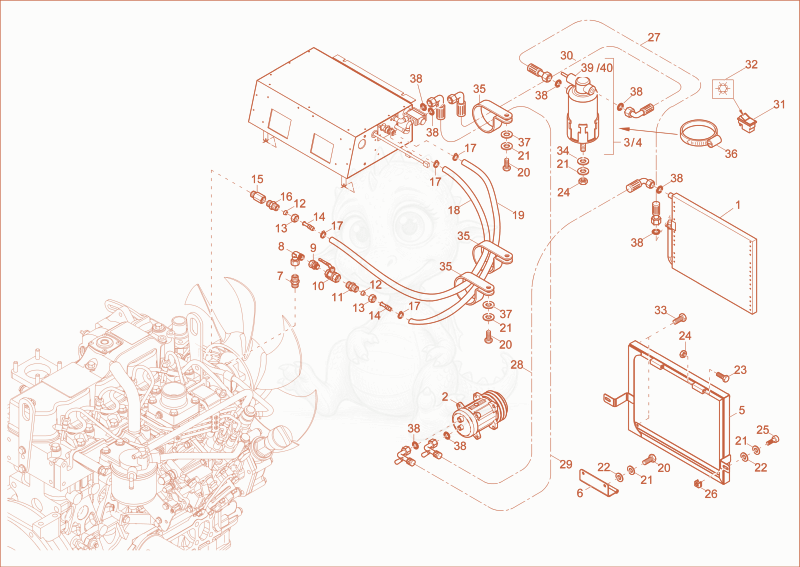

50Z3 AIR-CONDITIONING PLANT INSTALLATION Diagram
- Condenser 1000102910×1
- 21000106938Not stockedcompressor aircondition×1
- 31000113362Not stockedair dryer×1
- 41000416672Not stockedair dryer×1
- 51000108783Not stockedbracket condenser×1
- 61000108784Not stockedhinge×1
- GE12LR3/8A3CX GEK. GEWINDE - 1000082875×1
- 81000000573Not stockedscrew joint×1
- 91000015543Not stockedscrew joint×1
- 101000021495Not stockedball valve×1
- GE12LR3/8A3CX GEK. GEWINDE - 1000082875×1
- DPR12LX - 1000015484×2
- 131000015482Not stockedunion nut×2
- 141000016293Not stockedhose sleeve×2
- EXTENSION - 1000080118×1
- GE12LREDOMDA3C - 1000015492×1
- 171000019590Not stockedhose clamp×4
- 181000097639Not stockedheater hose×5
- 191000097639Not stockedheater hose×5
- 201000013008Not stockedhex screw×5
- 211000015437Not stockedlock washer×8
- 221000013027Not stockedwasher×4
- 231000085323Not stockedhex screw×2
- DIN985-M8-8-A2C - 1000015416×3
- 251000019593Not stockedcheese head screw×2
- 261000015425Not stockedcage nut×2
- 271000114531Not stockedhose aircondition system×1
- 281000114530Not stockedhose aircondition system×1
- 291000114529Not stockedhose aircondition system×1
- 301000112433Not stockedhose aircondition system×1
- tilt switch - 1000081956×1
- symbol aircondition device - 1000109671×1
- hex screw - 1000085377×2
- 341000015431Not stockedwasher×1
- pipe clamp RSGU 1.50/20 - 1000083325×3
- Hose Clamp - 1000083296×1
- 371000015448Not stockedwasher×3
- seal kit climate - 1000152394×1
- PRESSURE SWITCH - 1000153692×1
- 401000367647Not stockedpressure switch×1
