Dumper 5001_obsolete

5001 fuel system Diagram

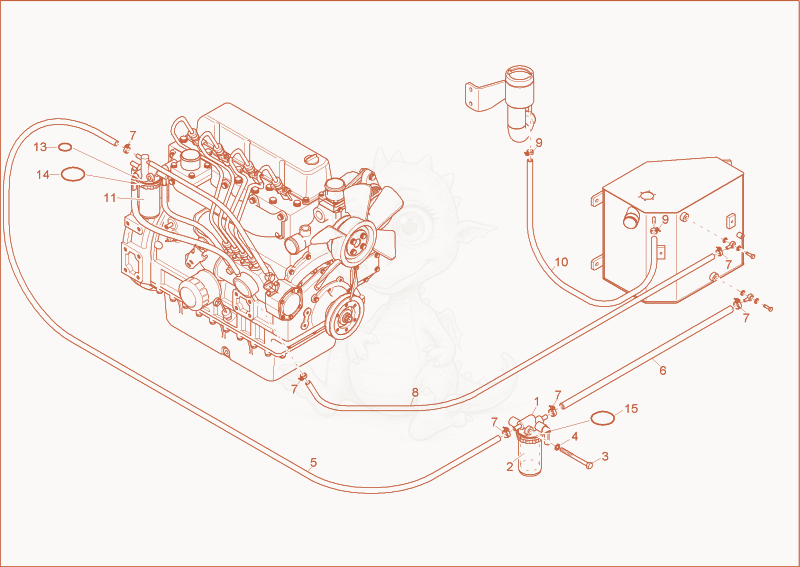

Exploded parts diagram of the fuel system of a Wacker Neuson 5001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069095Not stocked
    Water Seperator×1
  • 21000098673Price
    Filter insert - 1000098673×1
  • 31000015402Not stocked
    hex screw×1
  • 41000015437Not stocked
    lock washer×1
  • 51000097219Price
    fuel line - 1000097219×1.25
  • 61000097219Price
    fuel line - 1000097219×0.12
  • 71000094774Price
    HOSE STRAP - 1000094774×6
  • 81000097219Price
    fuel line - 1000097219×0.65
  • 91000094773Not stocked
    hose strap×2
  • 101000097902Not stocked
    fuel line×0.4
  • 111000004680Price
    FUEL FILTER - 1000004680×1
  • 121000001012Not stocked
    filter insert×1
  • 131000064543Price
    O-RING - 1000064543×1
  • 141000069998Not stocked
    gasket filter housing×1
  • 151000019708Price
    O-RING - 1000019708×1
