Dumper 5001_obsolete

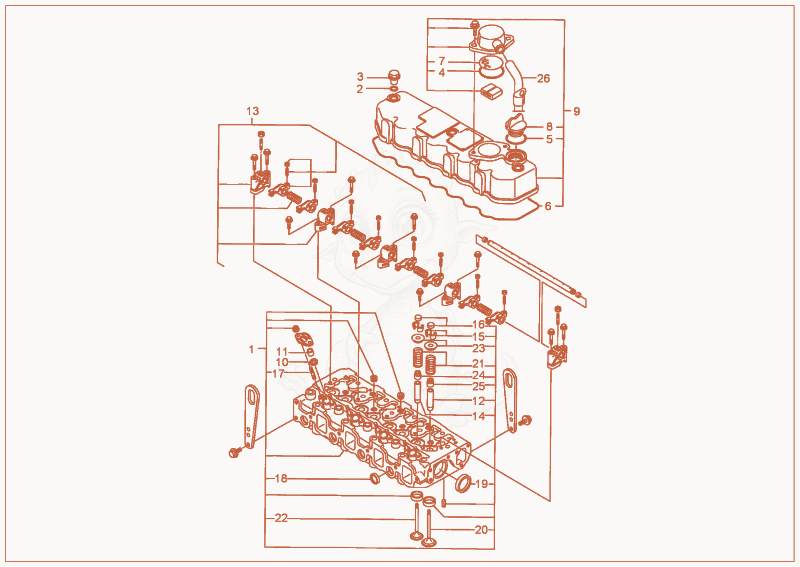

5001 CYLINDER HEAD, VALVE COVER Diagram
- 11000237232Not stockedcylinder head×1
- O-RING - 1000003894×3
- headnut - 1000035818×3
- Seal - 1000035812×1
- 51000035757Not stockedseal ring×1
- 61000005138Not stockedvalve cover seal×1
- Screen - 1000102747×1
- 81000002921Not stockedoil filler cap×1
- 91000102746Not stockedvalve cover×1
- 101000004679Not stockedseal ring×4
- PROTECTION - 1000107508×4
- valve - 1000107512×4
- bearing support - 1000102745×1
- valve - 1000075709×4
- CLAMP - 1000191553×8
- VALVE CAP - 1000107520×8
- stud bolt - 1000148690×8
- 181000035831Not stockedplug×4
- PLUG - 1000012355×2
- 201000035835Not stockedintake valve×4
- SPRING - 1000107515×8
- VALVE - 1000035839×4
- WASHER - 1000107517×8
- 241000035847Not stockedvalve shaft seal×4
- VALVE SHAFT SEAL - 1000107513×4
- venting hose - 1000085199×1
