Neuson 3703RD

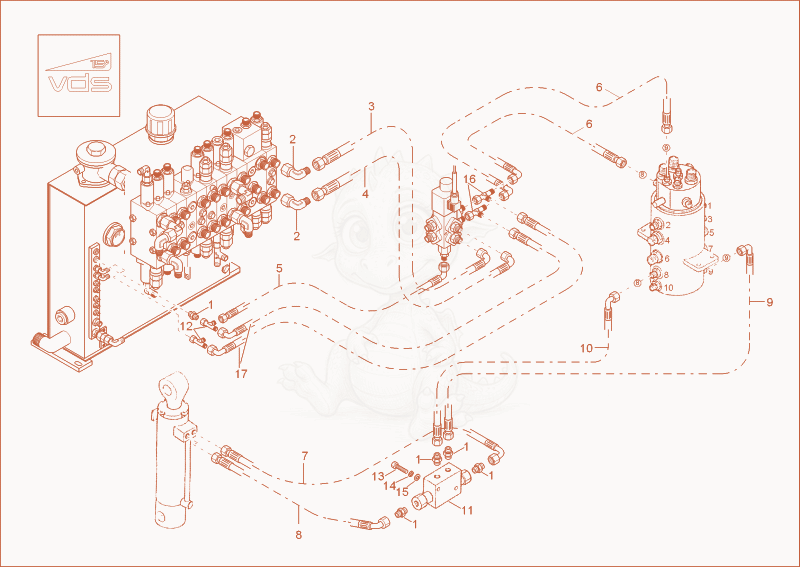

3703RD TILT CYLINDER INSTALLATION Diagram

Exploded parts diagram of the TILT CYLINDER INSTALLATION of a Wacker Neuson 3703RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015488Not stocked
    screw joint×5
  • 21000015512Not stocked
    screw joint×2
  • 31000077407Not stocked
    Hose×1
  • 41000077261Price
    SLHYDR 2SC 13 PN15 90 PN15 0 L850,0 0 - 1000077261×1
  • 51000076441Price
    SLHYDR 1SC 6,0PN8 90 PN8 0 L1000 0 - 1000076441×1
  • 61000013130Not stocked
    Hose×2
  • 71000019212Not stocked
    Hose×1
  • 81000076608Not stocked
    Hose×1
  • 91000016715Not stocked
    Hose×1
  • 101000076464Price
    SLHYDR 2SC 6,0PN8 90 PN8 0 L750,0 0 - 1000076464×1
  • 111000068578Not stocked
    non return valve×1
  • 121000015515Not stocked
    screw joint×2
  • 131000082270Price
    HEX SCREW - 1000082270×2
  • 141000082608Not stocked
    lock washer×2
  • 151000094962Price
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 161000071464Not stocked
    screw joint×2
  • 171000013122Not stocked
    Hose×2
