Neuson 3703RD

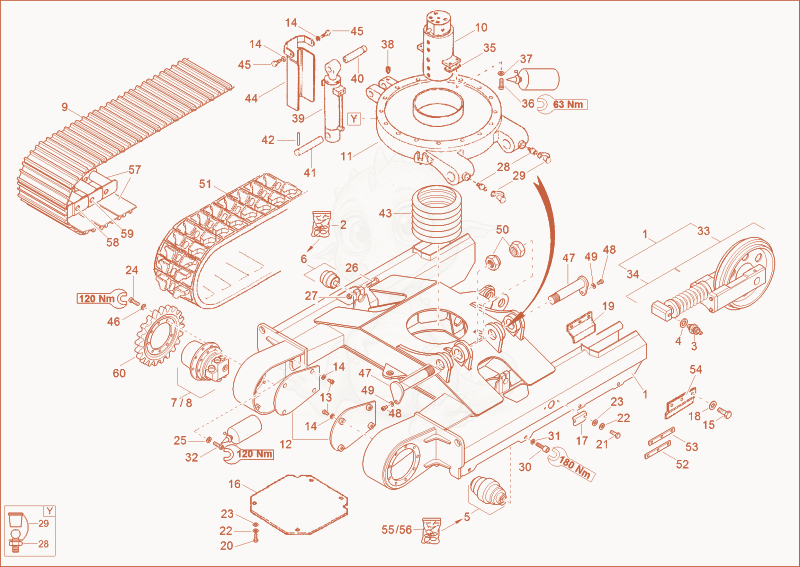

3703RD TRACKLAYING GEAR (OPTION STEEL CHAIN) Diagram

Exploded parts diagram of the TRACKLAYING GEAR (OPTION STEEL CHAIN) of a Wacker Neuson 3703RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000068861Not stocked
    track tensioner complete×2
  • 21000075463Price
    SEAL KIT SUPPORT ROLLER - 1000075463×2
  • 31000183476Not stocked
    non return valve×2
  • 41000124948Price
    screw seal - 1000124948×2
  • 51000173560Price
    Roller 1000173560×8
  • 61000068832Not stocked
    support roller×2
  • 71000004640Not stocked
    drive unit×2
  • 81000125872Not stocked
    drive unit×2
  • 91000093840Not stocked
    steeltrack×2
  • 101000021514Not stocked
    rotary junction×1
  • 111000071458Not stocked
    tilt console×1
  • 121000070686Not stocked
    cover undercarriage×2
  • 131000019593Not stocked
    cheese head screw×8
  • 141000015437Not stocked
    lock washer×10
  • 151000015372Not stocked
    hex screw×12
  • 161000070923Not stocked
    cover undercarriage×1
  • 171000070286Not stocked
    cover chain tensioner×2
  • 181000082611Price
    washer 13 A2C DIN6916 - 1000082611×12
  • 191000068828Price
    CHAIN PROTECTION - 1000068828×2
  • 201000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 211000013009Not stocked
    hex screw×4
  • 221000015438Not stocked
    lock washer×8
  • 231000015432Price
    washer 10,5 A2C DIN125 - 1000015432×8
  • 241000015356Not stocked
    cheese head screw×18
  • 251000022017Not stocked
    spring washer×18
  • 261000015392Not stocked
    cheese head screw×2
  • 271000020127Not stocked
    hexagon nut×2
  • 281000015475Not stocked
    grease nipple×3
  • 291000020783Not stocked
    cap grease nipple×3
  • 301000020983Not stocked
    hex screw×16
  • 311000095003Price
    NORTHLOCK DISC - 1000095003×16
  • 321000022173Not stocked
    cheese head screw×18
  • 331000068834Not stocked
    roller×2
  • 341000068869Not stocked
    spring assembly×2
  • 351000071442Price
    shim - 1000071442×2
  • 361000085505Price
    cheese head screw - 1000085505×4
  • 371000015449Not stocked
    northlock disc×4
  • 381000082257Price
    thread pin - 1000082257×1
  • 391000372042Not stocked
    tilt ram×1
  • 401000070234Not stocked
    pin×1
  • 411000071399Not stocked
    pin×1
  • 421000082714Price
    cotter pin - 1000082714×1
  • 431000022516Not stocked
    protecting hose×0.3
  • 441000093677Price
    Protectionplatetiltram 1000093677×1
  • 451000085389Price
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×2
  • 461000015450Not stocked
    northlock disc×18
  • 471000070235Not stocked
    pin×2
  • 481000015349Not stocked
    hex screw×2
  • 491000082609Price
    lock washer - 1000082609×2
  • 501000082572Price
    SET NUT - 1000082572×2
  • 511000093841Not stocked
    steeltrack×2
  • 521000079125Price
    shim - 1000079125×1
  • 531000079126Price
    shim - 1000079126×1
  • 541000068827Price
    CHAIN PROTECTION - 1000068827×2
  • 551000068854Not stocked
    seal kit×8
  • 561000171266Price
    SEAL KIT - 1000171266×8
  • 571000070715Not stocked
    chain link×86
  • 581000070716Not stocked
    pin×84
  • 591000070717Not stocked
    main pin×2
  • 601000070703Not stocked
    drive wheel×2
