3001 Dumper

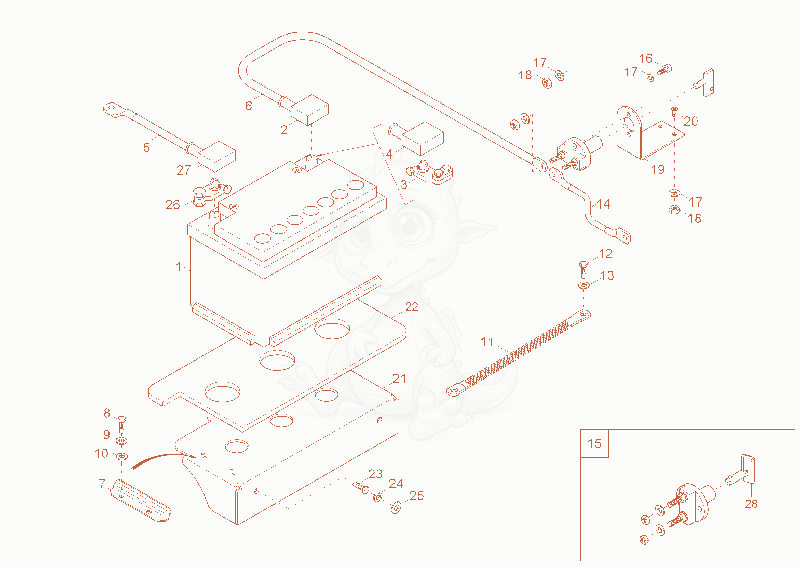

3001 battery Diagram
- Battery 1000301731×1
- 21000001557Not stockedclamp×1
- 31000157390Not stockedclamp×1
- 41000157422Not stockedterminal cap×1
- 51000062493Not stockedbattery cable×1
- 61000099421Not stockedplus cable×1
- bracket battery - 1000183116×1
- HEX SCREW - 1000085382×2
- 91000015444Not stockedspring washer×2
- washer M6,4-DIN134 - 1000094966×2
- 111000064990Not stockedearth strap×1
- 121000013009Not stockedhex screw×1
- Lock washer DIN6797 A10,5 - 1000095354×1
- 141000099422Not stockedplus cable×1
- shut off switch battery - 1000081674×1
- 161000018400Not stockedhex screw×2
- 171000015430Not stockedwasher×6
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
- 191000099420Not stockedconsole×1
- 201000015361Not stockedscrew×2
- 211000075209Not stockedbattery plate×1
- 221000075059Not stockedminus pole cap×1
- 221000075214Not stockedinsulating mat×1
- 231000015364Not stockedhex screw×2
- 241000015438Not stockedlock washer×2
- washer M10-DIN134 - 1000094974×2
- 261000065208Not stockedclamp×1
- 271000075059Not stockedminus pole cap×1
- cutoff switch key - 1000084909×1
