3001 Dumper

3001 engine hood Diagram

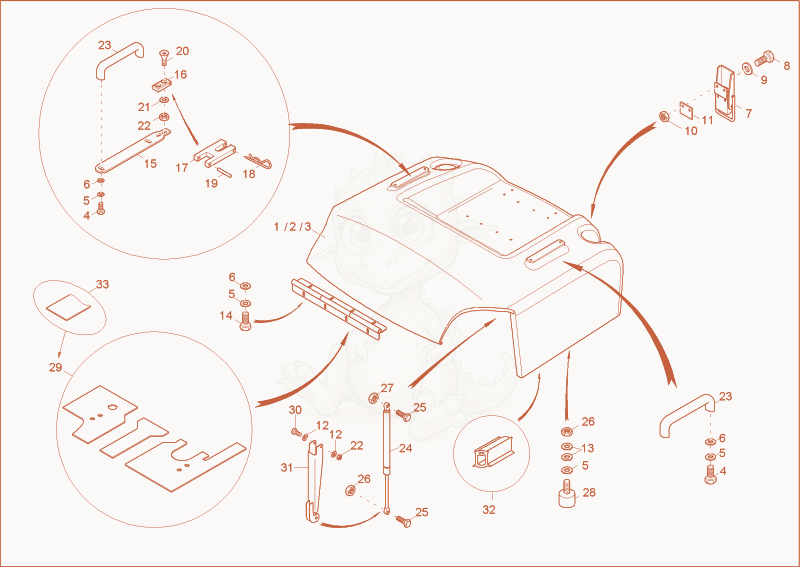

Exploded parts diagram of the engine hood of a Wacker Neuson 3001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000143558Not stocked
    engine hood×1
  • 21000106986Not stocked
    engine hood×1
  • 31000372289Not stocked
    engine hood×1
  • 41000085391Price
    hex screw - 1000085391×4
  • 51000015437Not stocked
    lock washer×10
  • 61000015448Not stocked
    washer×8
  • 71000003253Not stocked
    bonnet buckle×1
  • 81000085549Price
    ovalhead screw - 1000085549×4
  • 91000094967Price
    Washer M5,3-DIN134 - 1000094967×4
  • 101000085587Price
    HEXAGON NUT - 1000085587×4
  • 111000075203Price
    DISTANCE PLATE - 1000075203×1
  • 121000095343Price
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 131000085607Price
    washer - 1000085607×4
  • 141000013008Not stocked
    hex screw×4
  • 151000075205Not stocked
    support plate×1
  • 161000075204Price
    CONSOLE PUSHER - 1000075204×1
  • 171000075206Not stocked
    lock sliderstop×1
  • 181000015446Price
    plug - 1000015446×1
  • 191000082746Price
    cotter pin - 1000082746×1
  • 201000085530Price
    COUNTERSUNK SCREW - 1000085530×2
  • 211000094966Price
    washer M6,4-DIN134 - 1000094966×2
  • 221000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
  • 231000062684Not stocked
    handle×2
  • 241000001780Not stocked
    gas strut×2
  • 251000085391Price
    hex screw - 1000085391×4
  • 261000015427Not stocked
    hexagon nut×4
  • 271000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 281000065202Price
    BUFFER - 1000065202×2
  • 291000158021Not stocked
    insulating mat set×1
  • 301000085310Price
    hex screw - 1000085310×1
  • 311000127152Price
    support gas strut - 1000127152×1
  • 321000097930Price
    RUBBER PROFILE - 1000097930×3.5
  • 331000097227Not stocked
    glue tape×2
