1601 ROTATING BEACON (OPTION) Diagram

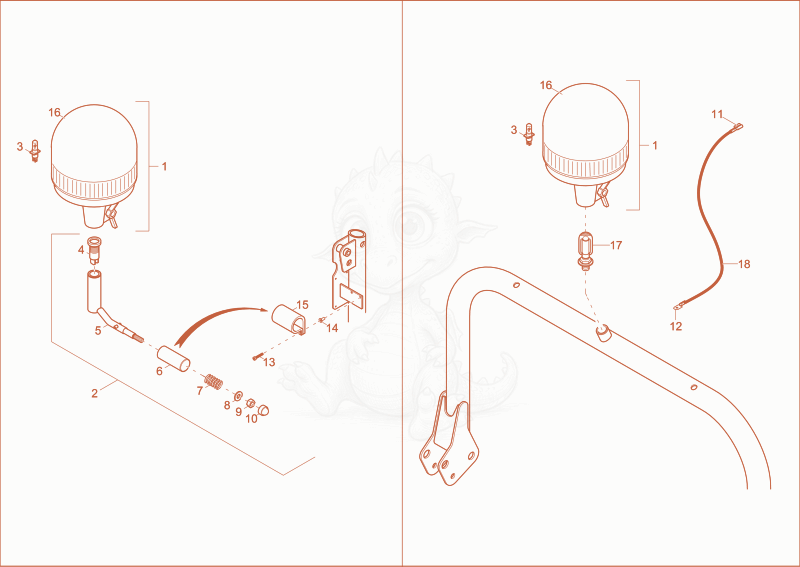

Exploded parts diagram of the ROTATING BEACON (OPTION) of a Wacker Neuson 1601, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000068953Not stocked
rotating beacon×1
21000068962Not stocked
bracket rotary beacon×1
31000081854Price
halogen bulb - 1000081854×1
41000102844Price
INSERT ROTATING BEACON - 1000102844×1
51000068955Not stocked
turn socket×1
61000068956Not stocked
rotating beacon sleeve×1
71000004298Not stocked
shim rotary beacon×1
81000015448Not stocked
washer×1
91000015416Price
DIN985-M8-8-A2C - 1000015416×1
101000004276Not stocked
cover cap×1
111000079496Price
plug sleeve - 1000079496×1
121000050022Not stocked
plug×1
131000085452Price
allen screw M5x20-8.8 A2C DIN912 - 1000085452×2
141000125088Not stocked
blind rivet nut×2
151000068954Price
console - 1000068954×1
161000068961Not stocked
glass rotary beacon×1
171000303528Not stocked
bracket rotating beacon×1
181000104886Price
WIRE - 1000104886×4.5
