1601 fuel tank Diagram

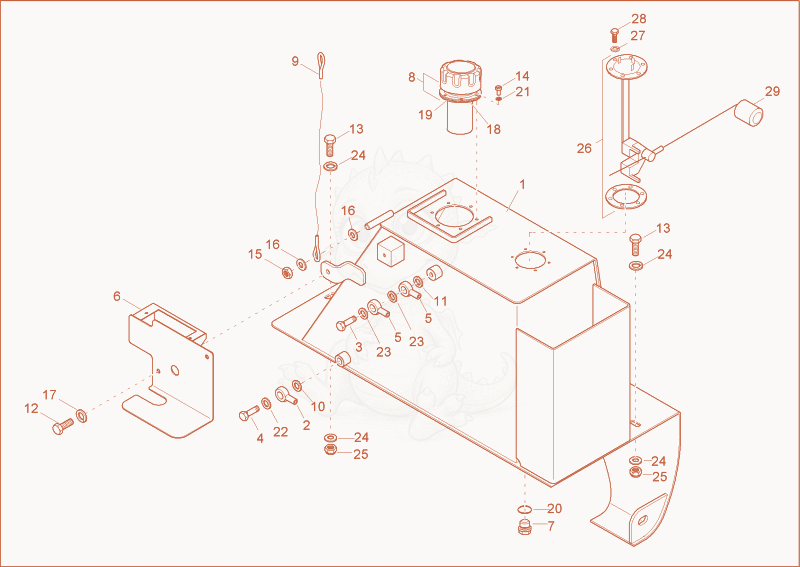

Exploded parts diagram of the fuel tank of a Wacker Neuson 1601, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000064956Not stocked
fuel tank×1
21000062413Not stocked
ring nipple×1
31000083089Not stocked
banjo bolt×1
41000062415Not stocked
banjo bolt×1
51000062412Not stocked
ring nipple×2
61000065187Not stocked
heat protection×1
71000082413Price
LOCK SCREW - 1000082413×1
81000065030Not stocked
filler pipe×1
91000065203Not stocked
steel cable×1
101000083676Price
SEAL RING - 1000083676×1
111000083677Not stocked
seal ring×1
121000085382Price
HEX SCREW - 1000085382×2
131000015343Not stocked
hex screw×4
141000082305Not stocked
cheese head screw×6
151000015408Price
nut M10-8 A2C-DIN985 - 1000015408×1
161000015432Price
washer 10,5 A2C DIN125 - 1000015432×2
171000015444Not stocked
spring washer×2
181000001873Price
SEAL - 1000001873×2
191000001874Price
SEAL - 1000001874×1
201000083619Not stocked
seal ring×1
211000082621Price
spring washer - 1000082621×6
221000085676Price
seal ring - 1000085676×1
231000083406Not stocked
seal ring×2
241000015431Not stocked
washer×8
251000015416Price
DIN985-M8-8-A2C - 1000015416×4
261000003878Not stocked
fuel transmitter×1
271000094961Price
washer 4,3 DIN125 - 1000094961×6
281000085546Price
ovalhead screw - 1000085546×6
291000003879Not stocked
float×1
