Neuson 1403RD

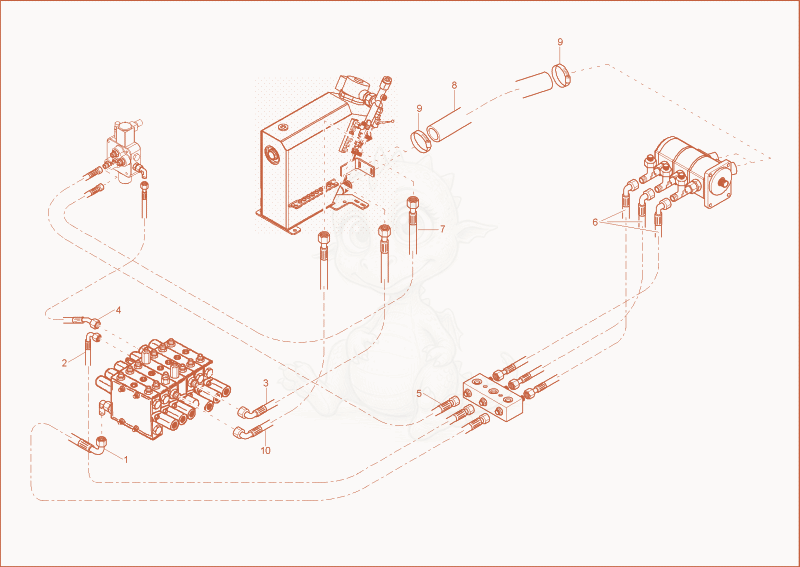

1403RD HYDRAULIC PUMP INSTALLATION Diagram

Exploded parts diagram of the HYDRAULIC PUMP INSTALLATION of a Wacker Neuson 1403RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000076820Price
    SLHYDR 2SC 10 PN12 90 PN12 0 L800,0 0 - 1000076820×1
  • 21000076821Price
    SLHYDR 2SC 10 PN12 90 PN12 0 L700,0 0 - 1000076821×1
  • 31000077646Not stocked
    Hose×1
  • 41000076825Not stocked
    Hose×1
  • 51000077110Not stocked
    Hose×1
  • 61000076941Price
    SLHYDR 2SC 10 PN12 90 PN12 0 L500,0 0 - 1000076941×3
  • 71000077129Not stocked
    Hose×1
  • 81000066453Not stocked
    suction hose×2
  • 91000083269Price
    HOSE CLAMP - 1000083269×4
  • 101000077507Not stocked
    Hose×1
