Neuson 1403RD

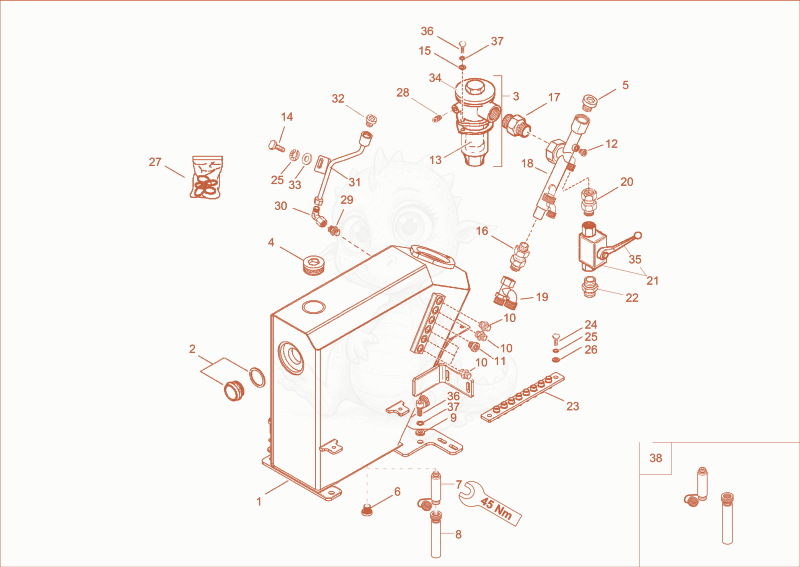

1403RD hydraulic tank Diagram

Exploded parts diagram of the hydraulic tank of a Wacker Neuson 1403RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000066096Not stocked
    hydraulic tank×1
  • 21000002989Not stocked
    view glass×1
  • 31000068811Not stocked
    reflux filter×1
  • 41000082788Not stocked
    screw joint×1
  • 51000082828Price
    VSTI11/4EDA3C - 1000082828×1
  • 61000020797Not stocked
    screw joint×1
  • 71000322338Not stocked
    service valve×1
  • 81000234769Price
    drain coupling - 1000234769×1
  • 91000015434Not stocked
    washer×4
  • 101000015488Not stocked
    screw joint×5
  • 111000022438Not stocked
    screw joint×1
  • 121000015477Not stocked
    lock screw×1
  • 131000004556Not stocked
    reflux filter insert×1
  • 141000013008Not stocked
    hex screw×2
  • 151000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 161000015568Not stocked
    non return valve×1
  • 171000082923Price
    GE35LR1A3CX - 1000082923×1
  • 181000066382Not stocked
    manifold×1
  • 191000066384Not stocked
    distributor piece×1
  • 201000015521Not stocked
    screw joint×1
  • 211000138755Price
    BALL VALVE - 1000138755×1
  • 221000015494Not stocked
    screw joint×1
  • 231000066385Not stocked
    lockplate strap×1
  • 241000019136Not stocked
    hex screw×2
  • 251000015437Not stocked
    lock washer×3
  • 261000015431Not stocked
    washer×3
  • 271000068817Not stocked
    seal kit back flow filter×1
  • 281000085566Price
    lock plug - 1000085566×1
  • 291000015492Price
    GE12LREDOMDA3C - 1000015492×1
  • 301000000573Not stocked
    screw joint×1
  • 311000066701Not stocked
    pipe line×1
  • 321000082826Price
    VSTI3/4ORA3C - 1000082826×1
  • 321000082831Price
    VSTI3/4EDA3C - 1000082831×1
  • 331000013027Not stocked
    washer×1
  • 341000068821Not stocked
    cover back flow filter×1
  • 351000172516Price
    SW09 GEKRÖPFT - 1000172516×1
  • 361000015376Not stocked
    cheese head screw×6
  • 371000015438Not stocked
    lock washer×6
  • 381000237378Not stocked
    service valve hydraulic oil×1
