Vibroplate XPS KMAT

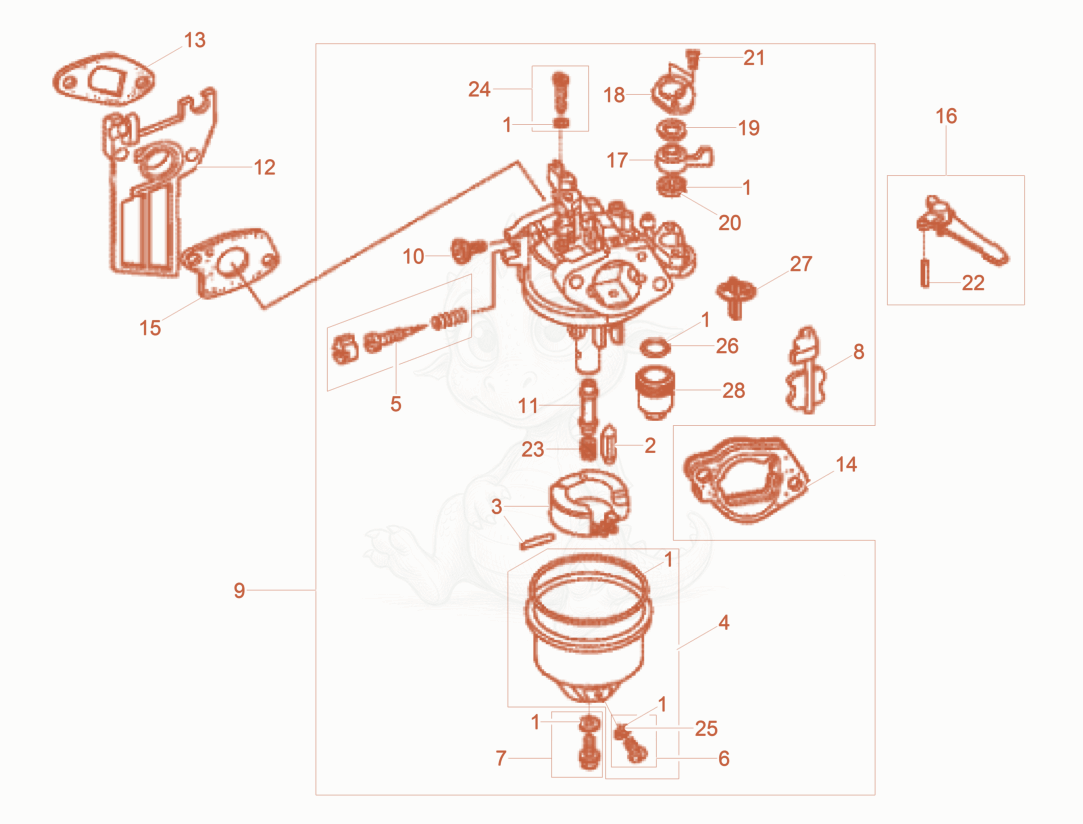

Despiece de Carburetor · XPSKMAT
- SET-CARBURETOR GASKETS - 5000072781×1
- SET-CARBURETOR FLOAT VALVE - 5000071022×1
- Float - 5000209764×1
- 45100005314No la vendemosFloat housing×1
- SCREW-SET - 5000089286×1
- Screw w/washer, carb. drain - 5200000430×1
- Screw w/washer, carb. bowl - 5200000431×1
- 85100005415No la vendemosStarter flap×1
- Carburetor cpl. - 5100048120×1
- SCREW-THROTTLE STOP - 5000071018×1
- Main Jet - 5100048121×1
- 125100005416No la vendemosIsolator×1
- GASKET - 5000082009×1
- SPACER - 5000071015×1
- GASKET - 5000081762×1
- LEVER-CHOKE CONTROL - 5000071013×1
- LEVER-FUEL VALVE - 5000150266×1
- PLATE-FUEL VALVE SETTINGS - 5000073269×1
- SPRING-FUEL LEVER - 5000073270×1
- GASKET-FUEL VALVE LEVER - 5000073272×1
- 215100005317No la vendemosScrew×2
- PIN 2 X 12MM,SPRING TYPE - 5000071014×1
- JET-MAIN #72 - 5000162703×1
- SET-JET, PILOT #40 - 5000084654×1
- Disc - 5100036241×1
- 265000125839No la vendemosO-Ring×1
- Filter - 5100000396×1
- FILTER-FUEL STRAINER CUP - 5000071023×1
