WL750p

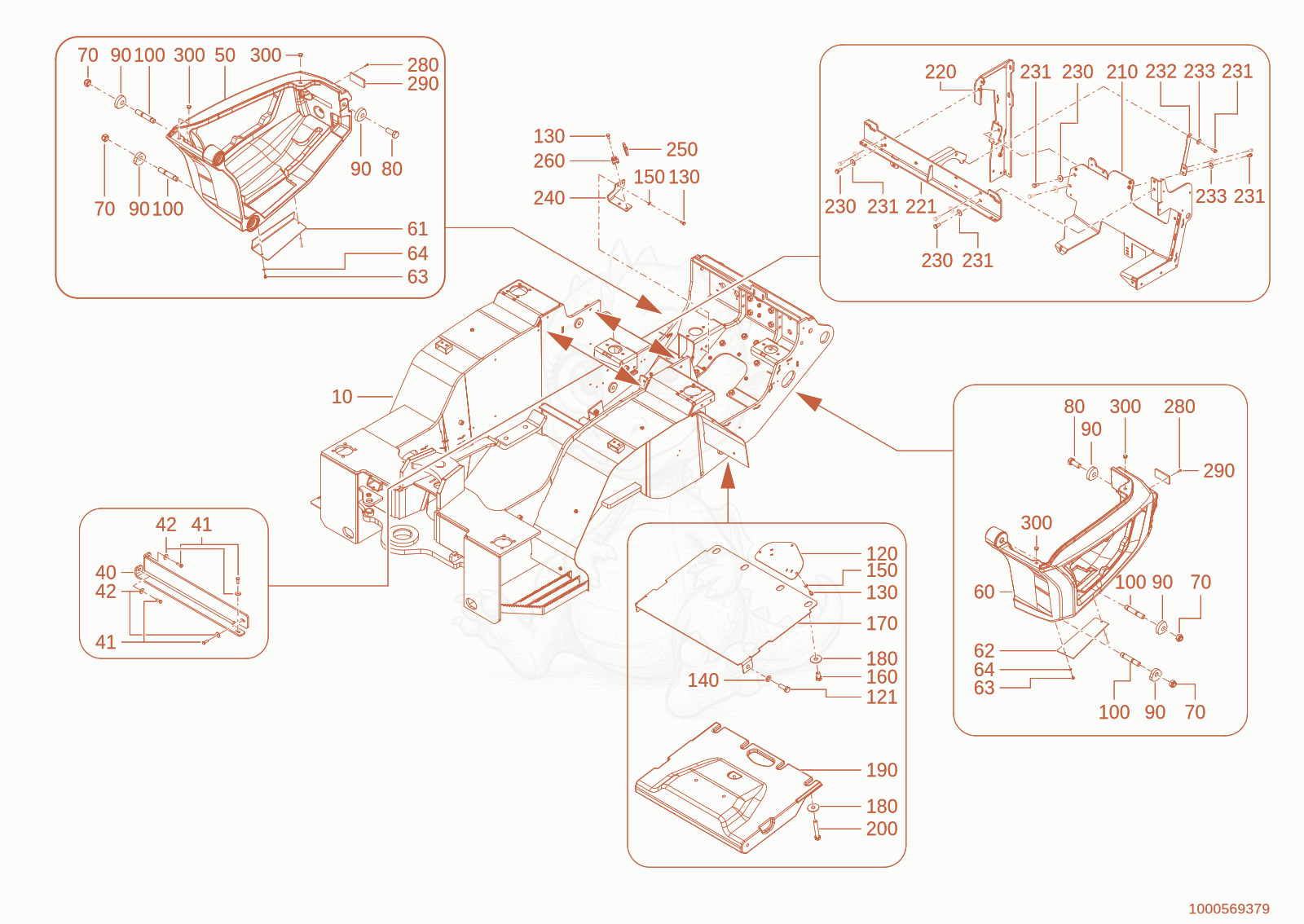

Despiece de REAR PART CHASSIS · WL750P(A04-05)
- 101000563608No la vendemosREAR PART CHASSIS×1
- 401000539746No la vendemosstrut×1
- 411000015347No la vendemoshex screw×4
- U-WASHER - 1000223000×4
- 501000512479No la vendemosballast weight×1
- 601000512478No la vendemosballast weight×1
- 611000523767No la vendemoscover plate×1
- 621000523766No la vendemoscover plate×1
- 631000020553No la vendemoshex screw×4
- 641000015430No la vendemosu-washer×4
- 701000018412No la vendemoshexagon nut×4
- 801000047723No la vendemoshex screw×2
- 901000049280No la vendemosu-washer×6
- STUD - 1000127041×4
- 1201000537555No la vendemosMaintenance cover×1
- 1211000015404No la vendemoshex screw×2
- 1301000013008No la vendemoshex screw×6
- WASHER - 1000021001×2
- 1501000015431No la vendemoswasher×5
- 1601000047710No la vendemoshex screw×4
- 1701000537569No la vendemoscover plate×1
- Washer - 1000223013×8
- 1901000537516No la vendemossupplement weight×1
- hex screw - 1000085336×4
- 2101000550519No la vendemosbracket×1
- 2201000550311No la vendemosbracket×1
- 2211000550485No la vendemosbracket×1
- Body washer 10,5x30x2,5 - 1000124882×10
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×10
- 2321000532059No la vendemossupport gas strut×1
- 2331000013027No la vendemoswasher×1
- 2401000549651No la vendemosfasten plate×1
- cable strap - 1000193759×1
- sockets - 1000282736×1
- ovalhead screw - 1000085546×4
- Reflector - 1000027030×2
- 3001000350310No la vendemoslock plug×4
