WL52 Wheel Loader

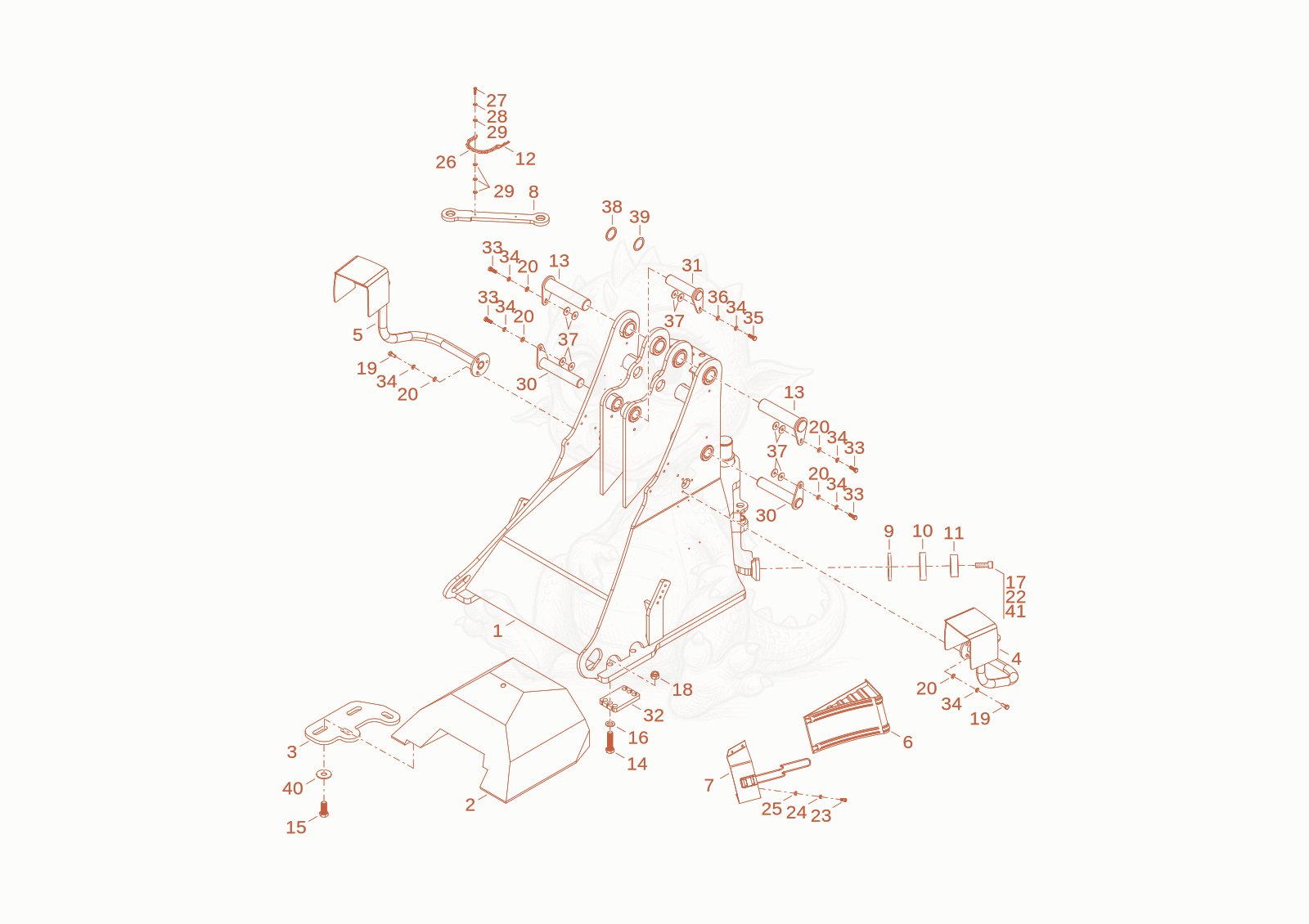

Despiece de front part frame · WL52
- 11000403322No la vendemosfront part frame×1
- 21000345626No la vendemosballast weight×1
- Bracket - 1000475220×2
- 41000350267No la vendemosbracket headlight×1
- 51000350268No la vendemosbracket headlight×1
- 61000050427No la vendemoswheel chock×1
- bracket - 1000029676×1
- 81000398611No la vendemosTransport securing strip×1
- u-washer - 1000306457×2
- PLATE - 1000211727×2
- Silent block - 1000228577×2
- Rubber buffer - 1000491334×2
- plug - 1000015446×2
- Pin 1000224752×2
- hex screw - 1000274029×8
- 151000047723No la vendemoshex screw×4
- U-WASHER - 1000274540×8
- 171000022234No la vendemoscheese head screw×2
- Hexagon nut M20-10 ISO 4032-Geomet 321 - 1000274071×8
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
- washer 10,5 A2C DIN125 - 1000015432×12
- nut M10-8 A2C-DIN985 - 1000015408×4
- 221000048357No la vendemoscheese head screw×2
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
- 241000015444No la vendemosspring washer×4
- Washer - 1000222875×4
- locking chain - 1000082730×1
- 271000015369No la vendemoscheese head screw×1
- 281000015444No la vendemosspring washer×1
- 291000015430No la vendemosu-washer×4
- Pin 1000234060×2
- Pin 1000224745×1
- Plate 1000238302×2
- 331000015364No la vendemoshex screw×4
- 341000022016No la vendemosspring washer×11
- SCREW - 1000223198×1
- Washer - 1000222588×1
- washer 11x34x3-DIN440 - 1000085608×8
- DISC-FITTING - 1000222589×10
- fitting disc - 1000094768×2
- u-washer - 1000222745×8
- Bolt - 1000222796×2
