WL34

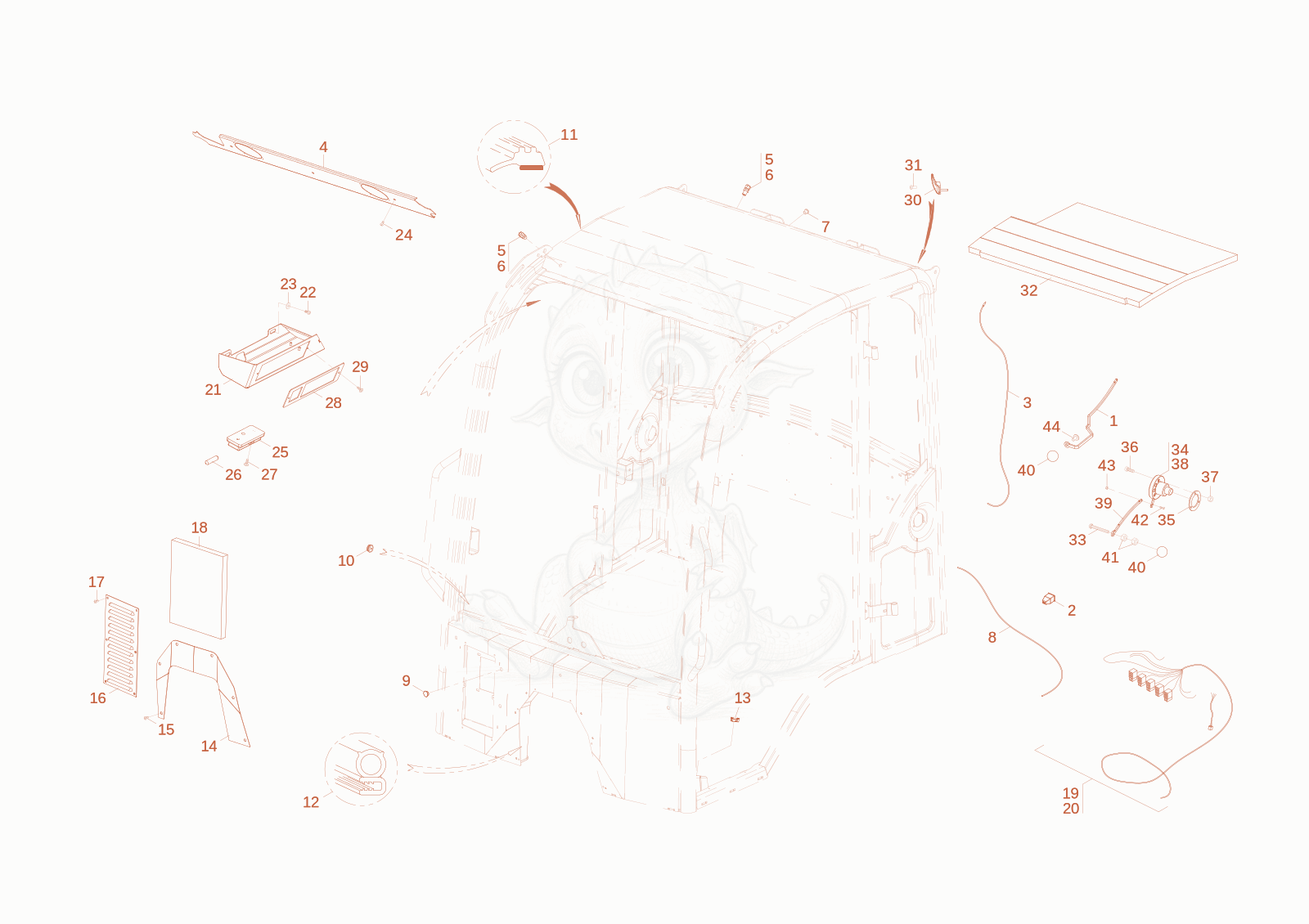

Despiece de mounting set cabine · WL34
- 11000360657No la vendemosantilock rod×1
- PROTECTING CAP - 1000151117×4
- Cable - 1000213573×1
- Cover - 1000310741×1
- 51000067792No la vendemoscable screwunion×5
- Ring - 1000225013×5
- screw - 1000270047×2
- water hose - 1000116971×8
- blind plug - 1000075523×1
- Plug - 1000311150×2
- sealing profile - 1000213765×1
- sealing profile - 1000213329×1
- 131000015410No la vendemoscage nut×5
- CABINE COVER - 1000214583×1
- screw M6x12 ISO7380-2 - 1000165459×6
- AIROUTPUT SCREEN - 1000216151×1
- screw M6x12 ISO7380-2 - 1000165459×6
- 181000310718No la vendemosFresh Filter a AIR×1
- 191000344353No la vendemoswiring harness cabine×1
- 201000345971No la vendemoswiring harness roof×1
- 211000310719No la vendemosshift console×1
- screw M6x12 ISO7380-2 - 1000165459×2
- washer - 1000233504×2
- screw M6x12 ISO7380-2 - 1000165459×3
- 251000003334No la vendemosDome Light×1
- bulb - 1000085712×1
- 271000085560No la vendemosovalhead screw×2
- SCREEN - 1000208375×1
- 291000048653No la vendemoscountersunk screw×2
- cloth hook - 1000124822×1
- ovalhead screw - 1000085550×1
- 321000310720No la vendemoscab trim×1
- 331000015344No la vendemoshex screw×1
- door fastener - 1000243514×1
- rubber disc - 1000124797×4
- 361000015396No la vendemosovalhead screw×6
- HEXAGON NUT - 1000085587×6
- DOOR FASTENER - 1000243747×1
- ANTILOCK ROD - 1000243773×2
- ball head - 1000124794×2
- Nut - 1000213514×2
- 421000048516No la vendemosflat head screw×3
- 431000049057No la vendemoshexagon nut×3
- 441000356555No la vendemosflat head screw×1
