WL250

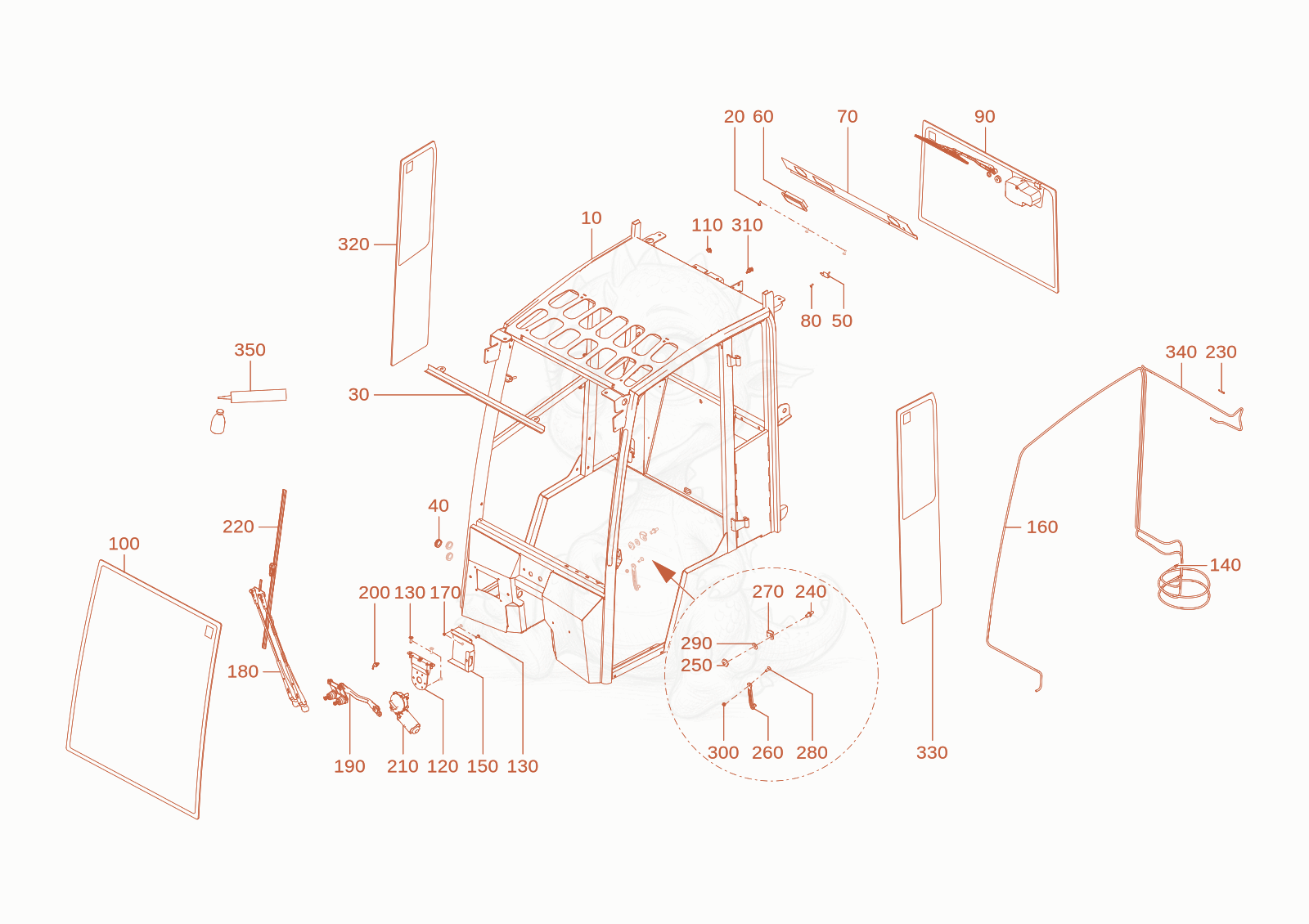

Despiece de mounting set cabine · WL250(A02-01)
- SCREW - 1000313423×3
- 301000327093No la vendemoscabine cover×1
- 401000065509No la vendemosblind plug×3
- cloth hook - 1000124822×1
- 601000213491No la vendemosinternal light×1
- 701000485599No la vendemoscab trim×1
- 801000048524No la vendemosflat head screw×1
- 901000485600No la vendemosrear window×1
- 1001000465988No la vendemosfront window×1
- screw - 1000270047×1
- Bracket - 1000485620×1
- Flat Head Screw - 1000285454×7
- 1401000068914No la vendemosnon return valve×2
- 1501000372791No la vendemoswiper motor cover×1
- 1601000485818No la vendemoswater hose×1
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- 1801000384105No la vendemoswiper arm×1
- likage - 1000384104×1
- Hose duct - 1000243865×1
- 2101000321881No la vendemoswiper motor×1
- 2201000384106No la vendemoswiper blade×1
- 2301000065750No la vendemosconnection piece×1
- 2401000327097No la vendemoscatch bolt×1
- 2501000317566No la vendemosthread plate×1
- 2601000004275No la vendemosdoor hinge×1
- BRACKET - 1000075584×1
- 2801000174473No la vendemoscountersunk screw×1
- WASHER - 1000004273×1
- DIN985-M8-8-A2C - 1000015416×1
- Hose duct - 1000243865×1
- 3201000446887No la vendemosside window×1
- 3301000446890No la vendemosside window×1
- 3401000485819No la vendemoswater hose×1
- 3501000001353No la vendemosglue kt×1
