VP1340W-LL VIBROPLATE

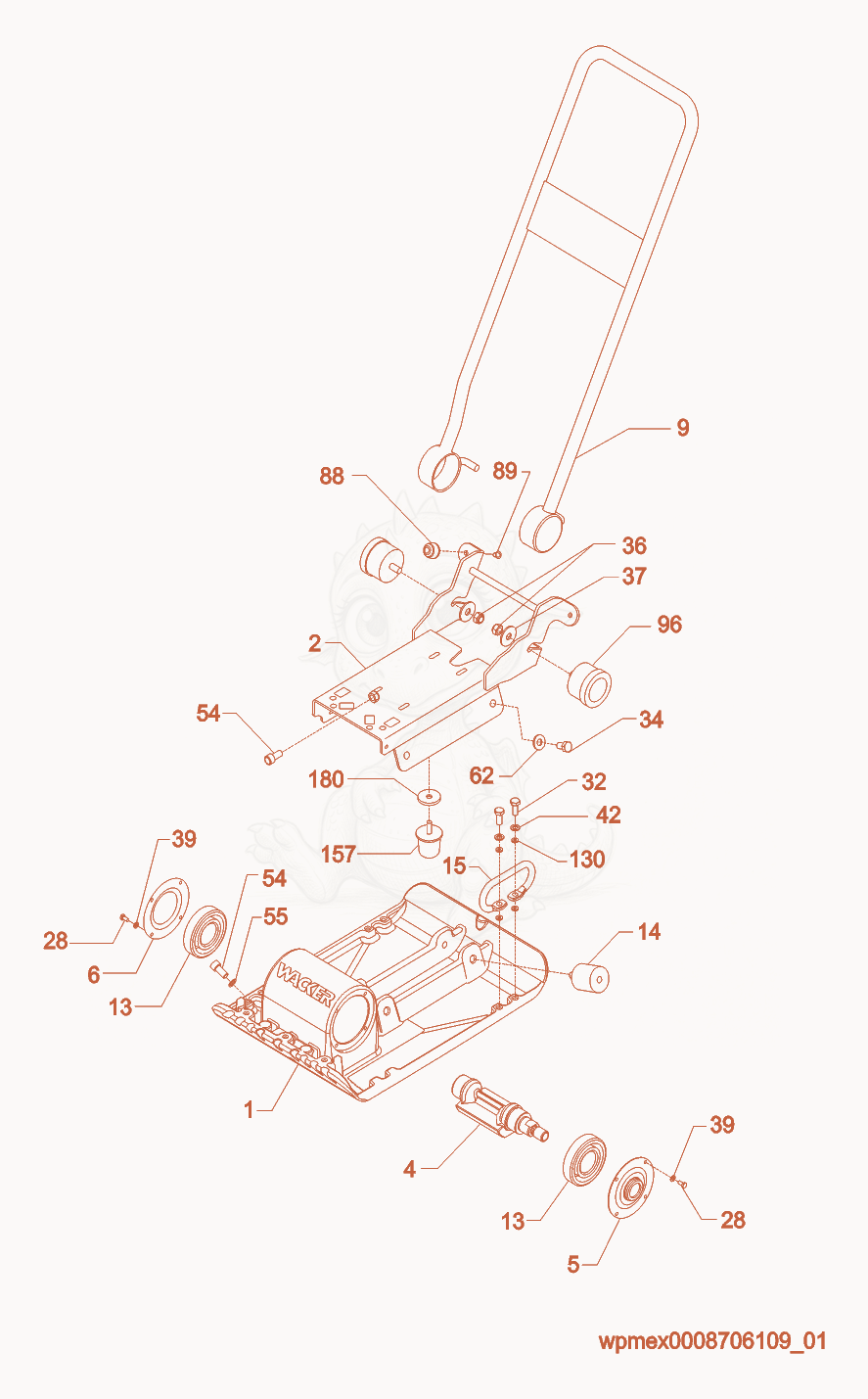

Despiece de Baseplate/Console cpl. · VP1340W-LL
- 15000400935No la vendemosBaseplate×1
- 25000400938No la vendemosConsole×1
- SHAFT-MACHINED,40CM - 5000117081×1
- 55000400944No la vendemosEnd cap w/seal×1
- 65000400940No la vendemosEnd cap w/hole×1
- 95000400969No la vendemosGuide handle cpl.×1
- 135000117024No la vendemosBall bearing×2
- SHOCKMOUNT 50X55,FORM B - 5000130000×4
- 155000400963No la vendemosLifting handle×3
- SCREW M6 X 12 HX.HD. - 5000012357×7
- SCREW M10 X 25 HX.HD. - 5000011440×6
- SCREW M12 X 20 HX.HD. - 5000012368×4
- NUT-LOCK M12X1.75 HEX - 5000010366×2
- WASHER .531X 1.625X.120,FLAT - 5000114766×2
- WASHER-LOCK B6 - 5000010649×8
- WASHER-LOCK 10 - 5000033988×6
- Screw-M12 x 25, 12.9,Soc Mechanical Zinc - 5000017086×2
- SEAL-RING 12 X 18 - 5000013444×1
- WASHER-LOCK A12 - 5000031565×4
- SHOCKMOUNT-M30X20,SPECIAL - 5000105056×2
- SCREW M8 X 12 HX.HD. - 5000012360×2
- SCREW M6 X 20 HX.HD. - 5000011470×1
- SCREW M6 X 20 HX.HD. - 5000011470×1
- 965000130064No la vendemosShockmount×2
- SPACER-RUBBER - 5000130787×12
- 1575000130961No la vendemosShockmount×1
- WASHER-SPACER - 5000400591×1
