TH627

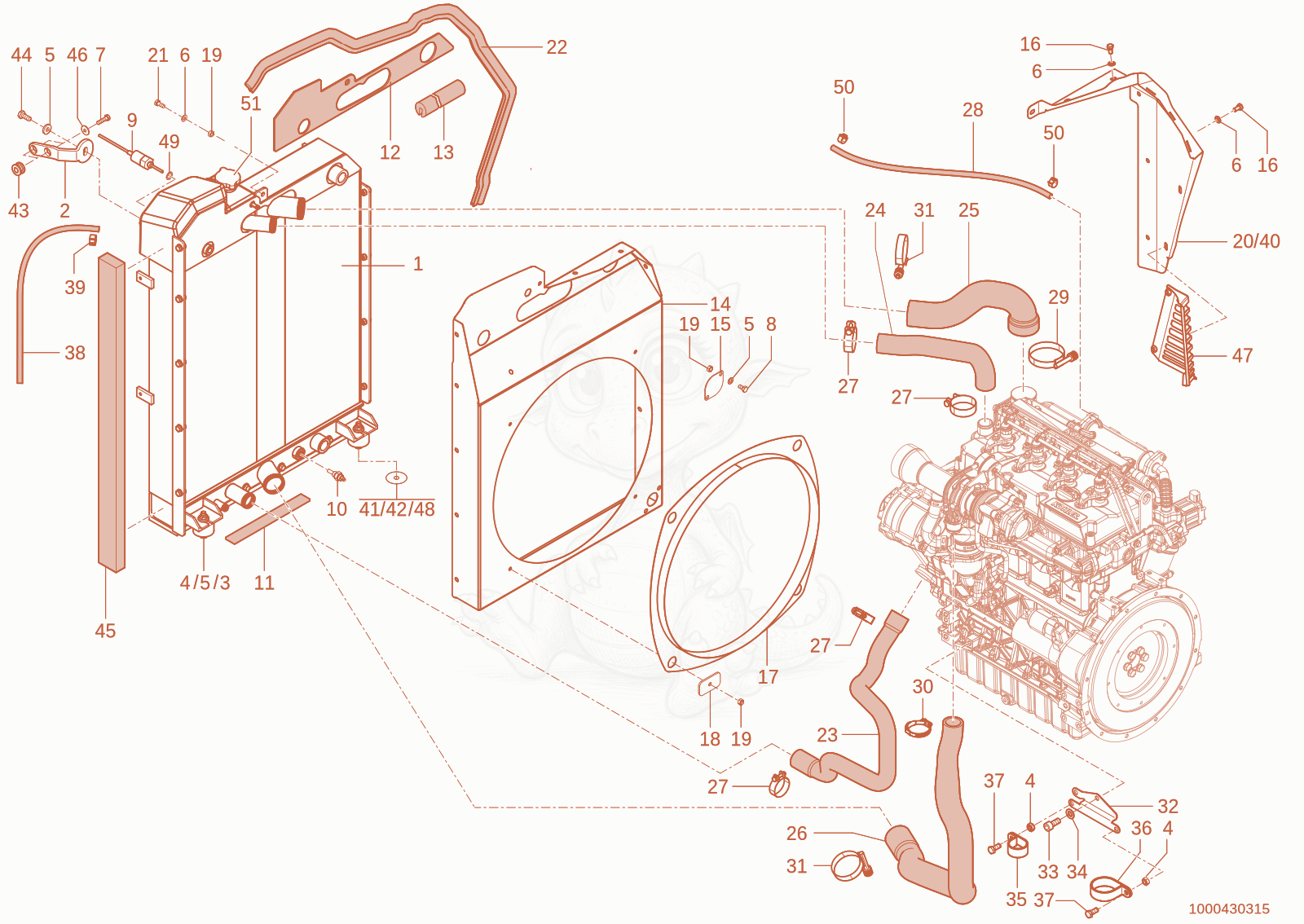

Despiece de Cooling + Storage · TH627(418-22)
- COOLER - 1000334386×1
- Bracket - 1000361479×1
- bearing - 1000187496×2
- nut M10-8 A2C-DIN985 - 1000015408×4
- 51000049278No la vendemoswasher×5
- 61000015431No la vendemoswasher×5
- 71000047828No la vendemoshex screw×2
- 81000019136No la vendemoshex screw×2
- level indicator - 1000189283×1
- 101000336644No la vendemostemperature sensor×1
- 111000335621No la vendemosinsulating mat×1
- Seal - 1000335622×1
- SEAL - 1000168387×0.62
- 141000393541No la vendemosguide plate×1
- Plate - 1000272977×1
- 161000019136No la vendemoshex screw×18
- 171000360818No la vendemosguide plate×1
- WASHER - 1000171392×4
- 191000013022No la vendemoshexagon nut×5
- 201000335565No la vendemosseperating sheet×1
- 211000015343No la vendemoshex screw×3
- rofile - 1000097040×1.3
- 231000360771No la vendemospreshaped tube×1
- 241000334503No la vendemospreshaped tube×1
- 251000409191No la vendemospreshaped tube×1
- 261000359970No la vendemospreshaped tube×1
- 271000515753No la vendemoshose clamp×4
- 281000387446No la vendemosheater hose×0.575
- Clamp - 1000160027×1
- CLAMP TORRO WF 32-50/9 C7 W3 - 1000446676×1
- Clamp - 1000274258×2
- 321000360011No la vendemosbracket×1
- cheese head screw - 1000085474×2
- 341000049219No la vendemoswasher×2
- CLAMP - 1000032104×1
- CLAMP - 1000031958×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
- 381000387446No la vendemosheater hose×1.17
- clamp - 1000294815×1
- 401000348368No la vendemosseperating sheet×1
- DISC - 1000099801×1
- DISC - 1000117590×1
- bearing - 1000323977×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
- 451000361678No la vendemosinsulating mat×1
- 461000013027No la vendemoswasher×14
- 471000438042No la vendemosprotecting screen×1
- DISC - 1000370359×1
- 491000019580No la vendemosseal ring×1
- clamp - 1000294815×2
- LOCK COVER - 1000098808×1
